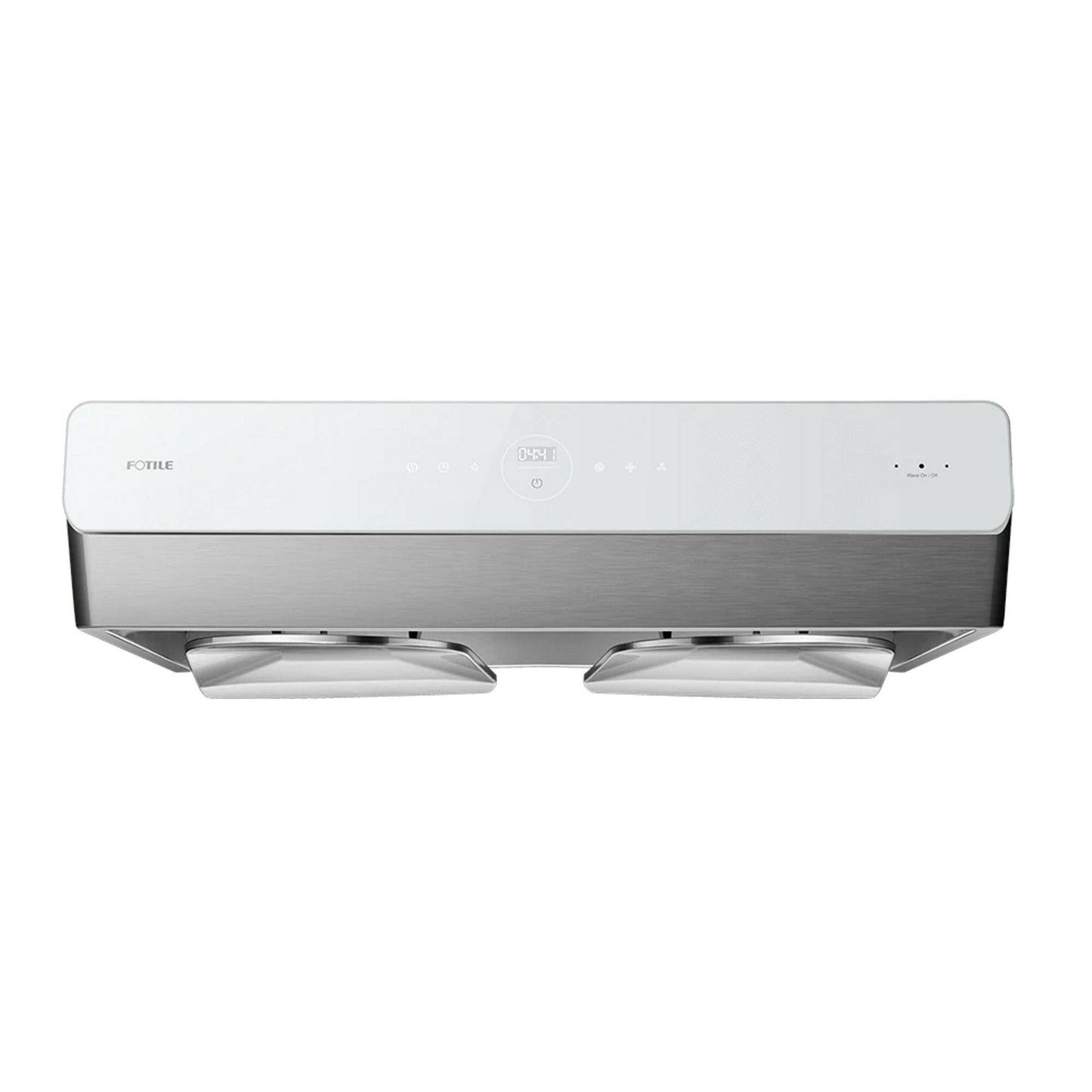

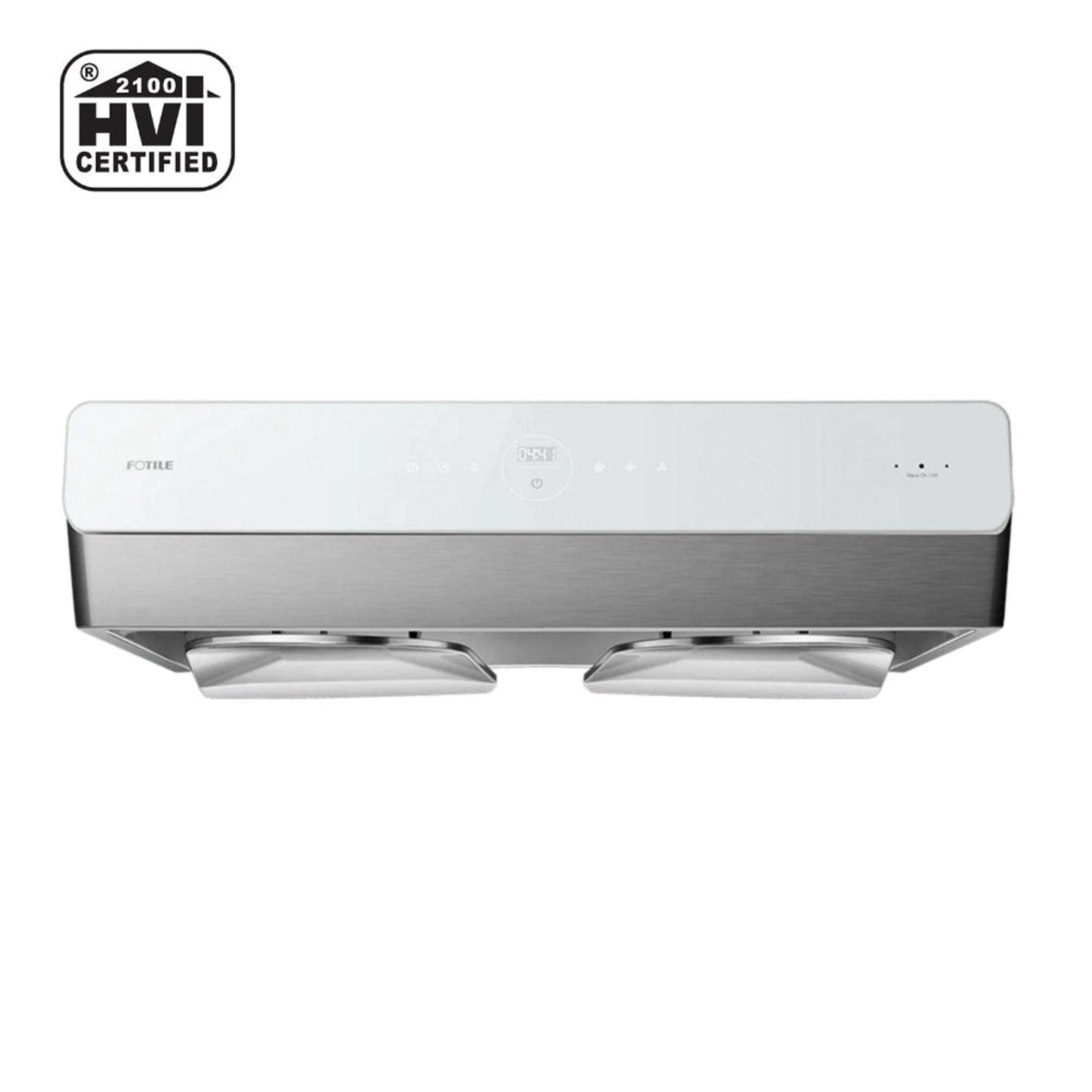

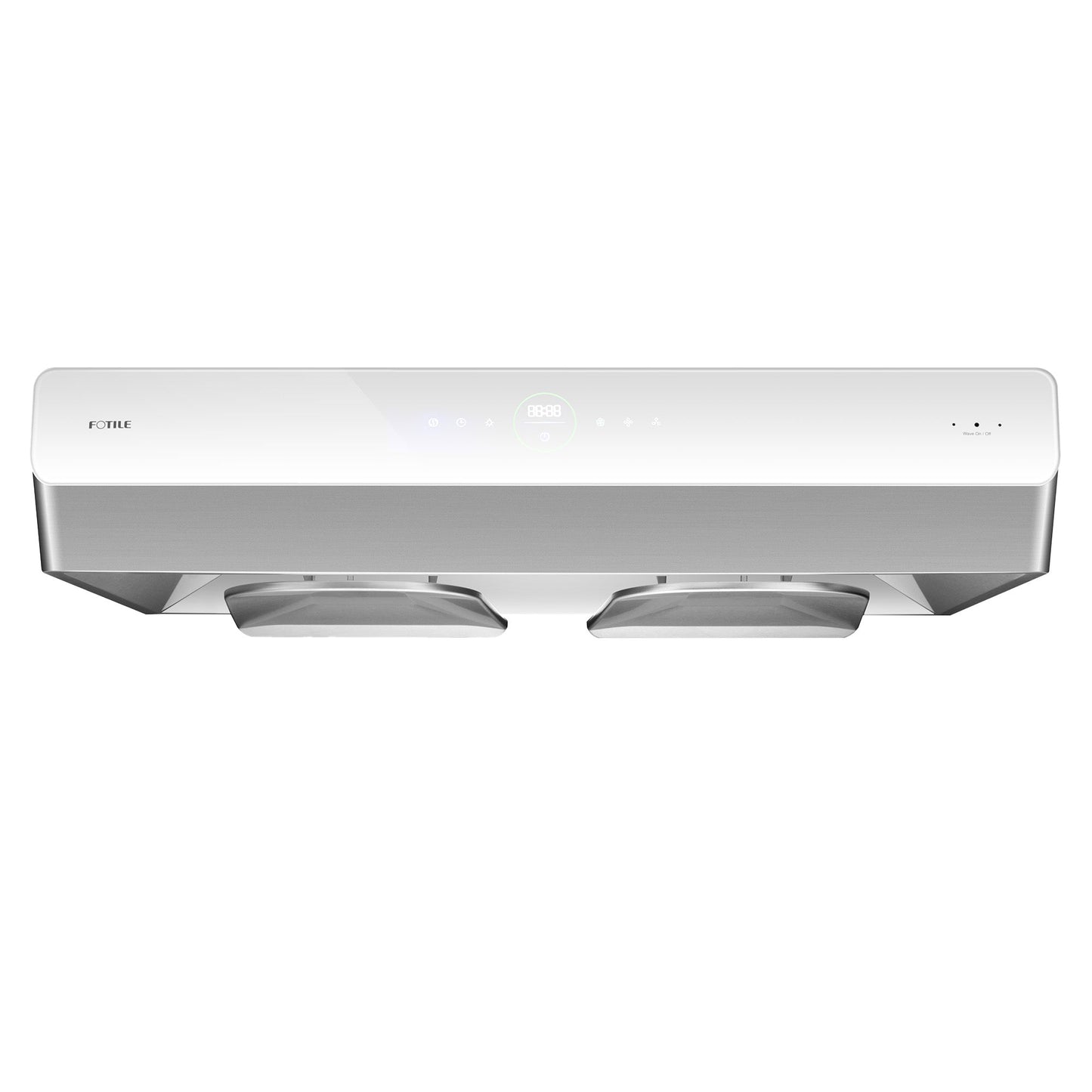

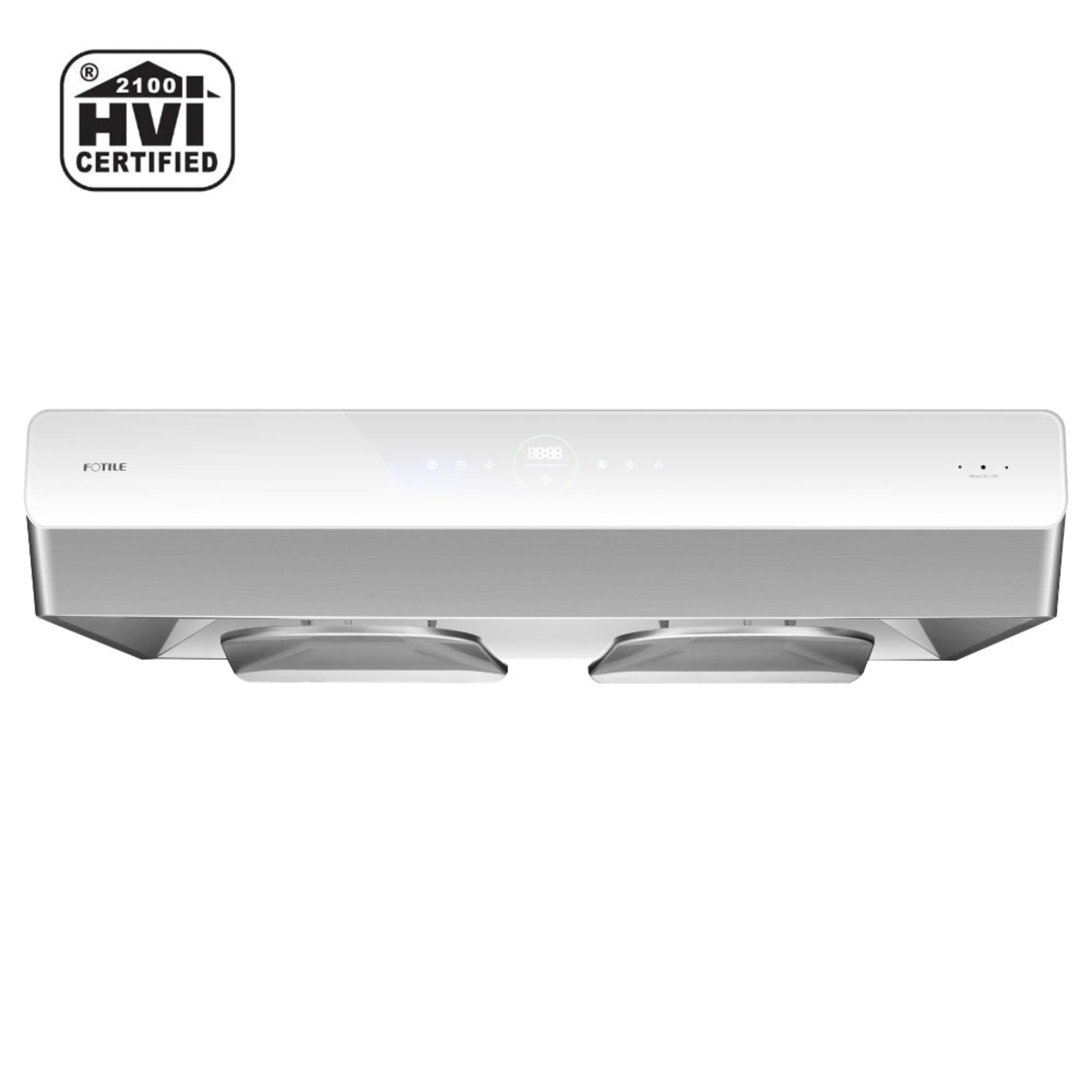

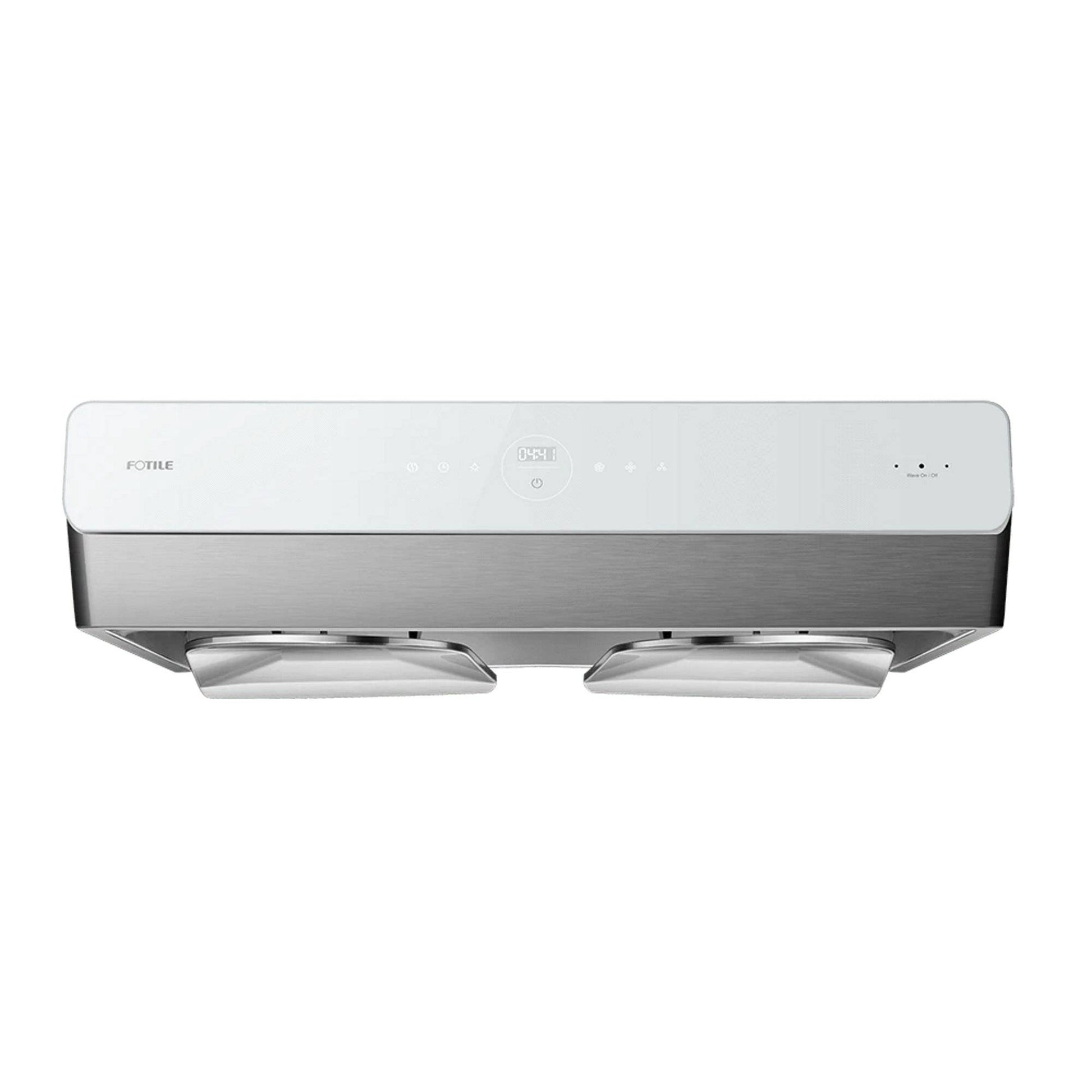

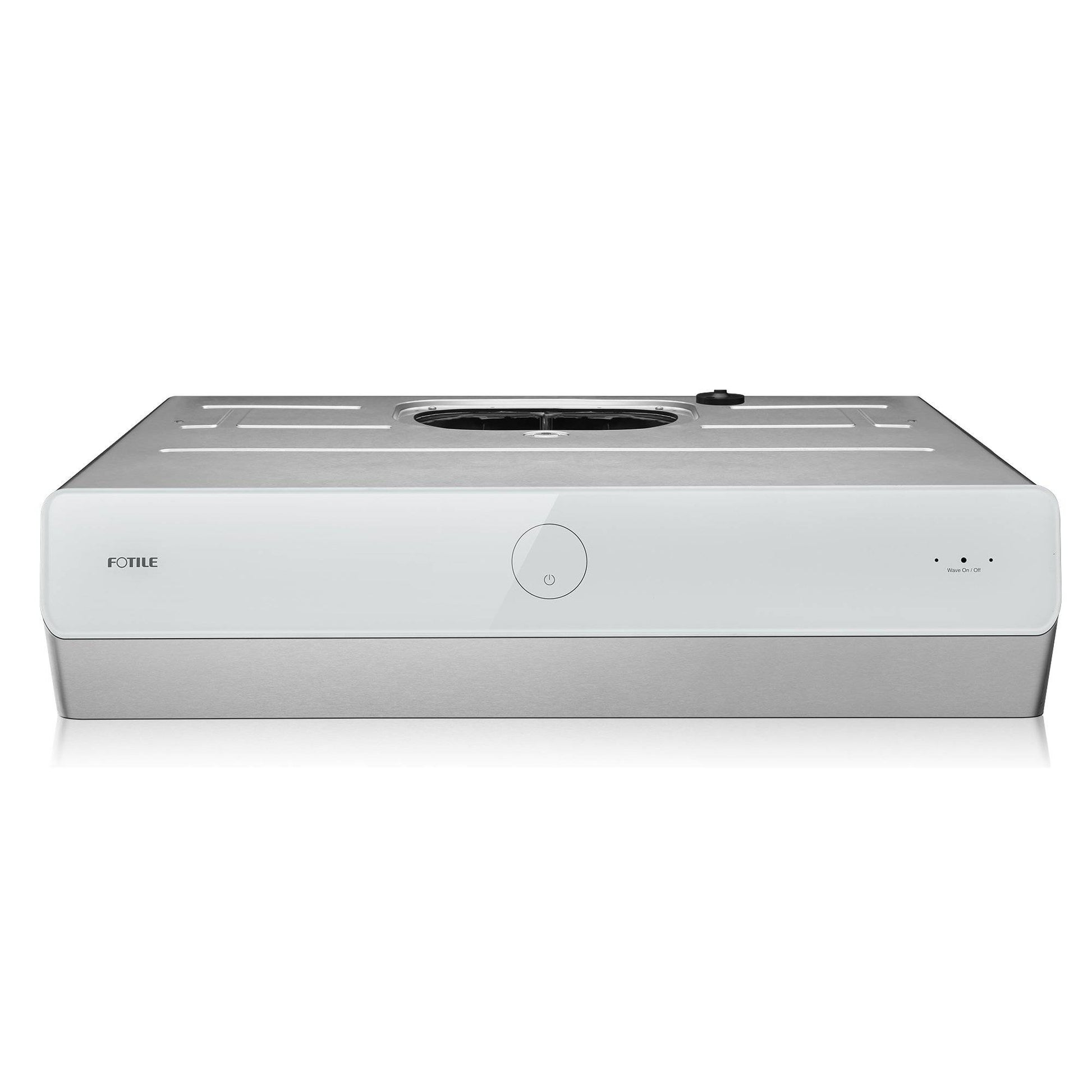

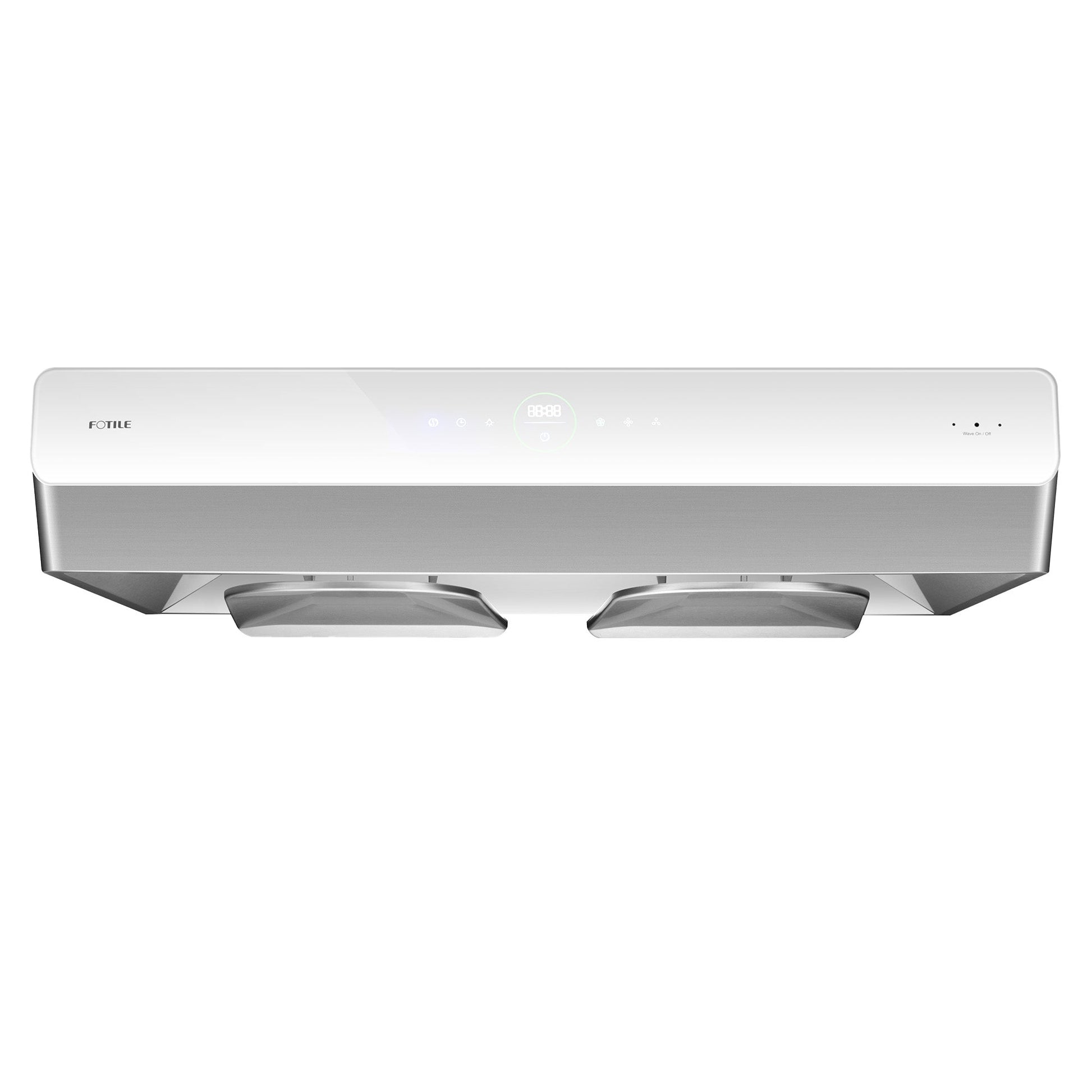

The FOTILE Pixie Air Series (UQG3002 / UQG3602) is the ultimate solution for kitchens with limited space that still require heavy-duty ventilation. This series is known for its ultra-slim profile and its "convertible" nature, meaning it can be installed as a traditional ducted hood or as a recirculating (ductless) unit with an optional kit.

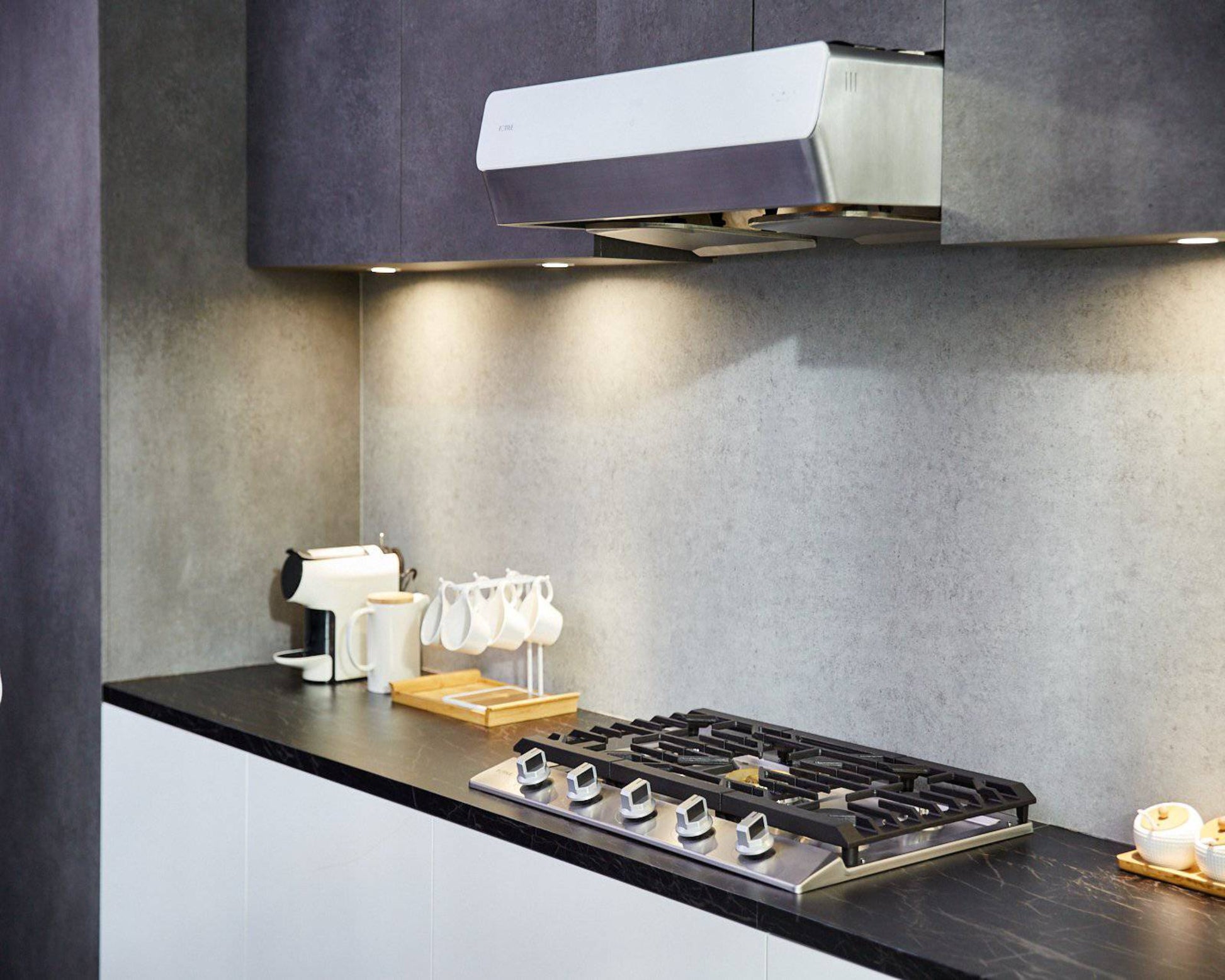

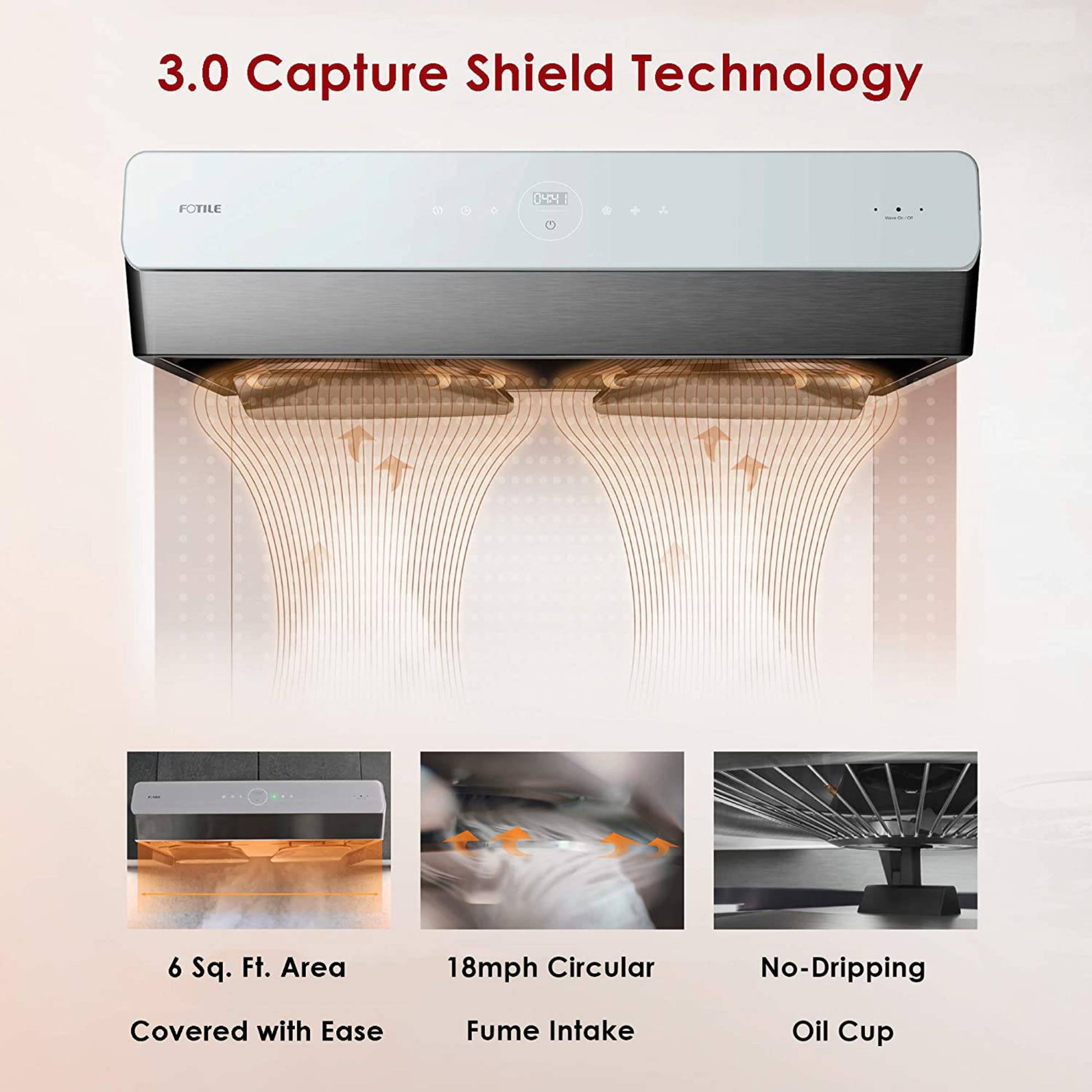

The Pixie Air Series blends a sleek, modern aesthetic with high-tech safety features. Unlike the Slant Vent series, the Pixie Air sits flat under your cabinets but uses 3.0 Captur-Shield Technology to create a "Coanda Effect," guiding smoke and grease toward the fans with surgical precision. It is specifically designed to be one of the quietest hoods on the market, operating at a library-quiet 37–38dB on its lowest setting.
Key Features
- Motion-Gesture Control: Wave your hand in front of the sensor to power the unit on/off or adjust the fan and lights—perfect for when your hands are covered in flour or oil.
- Intelligent Air Management: This smart system monitors your kitchen air for harmful gases or noxious fumes (like CO or VOCs). If detected, the hood automatically triggers the fan to vent them out.
- CFM Adjustment Technology (CAT): To help homeowners comply with strict local building codes, this feature allows you to "lock" the motor to a specific CFM limit (e.g., 400 CFM) during installation.

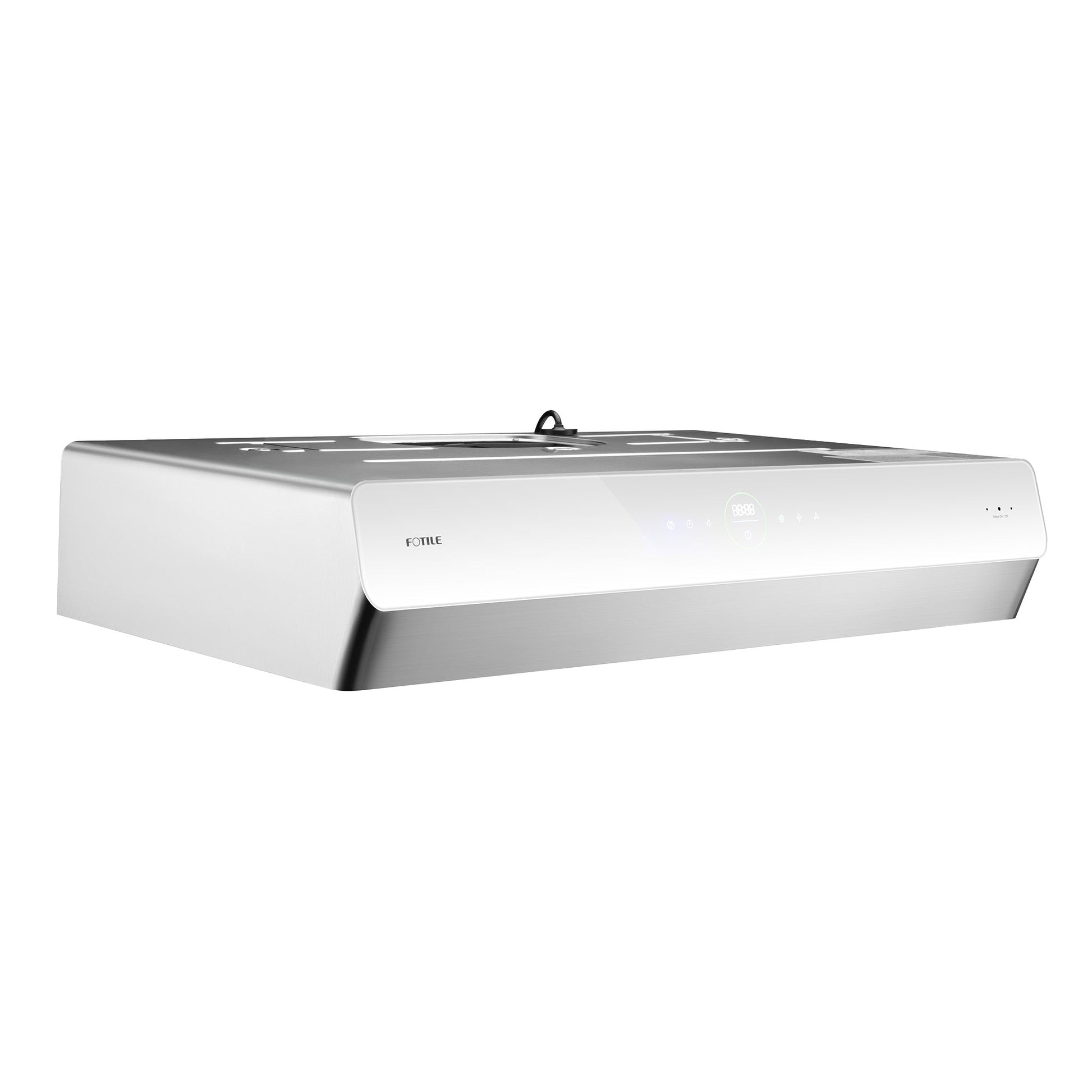

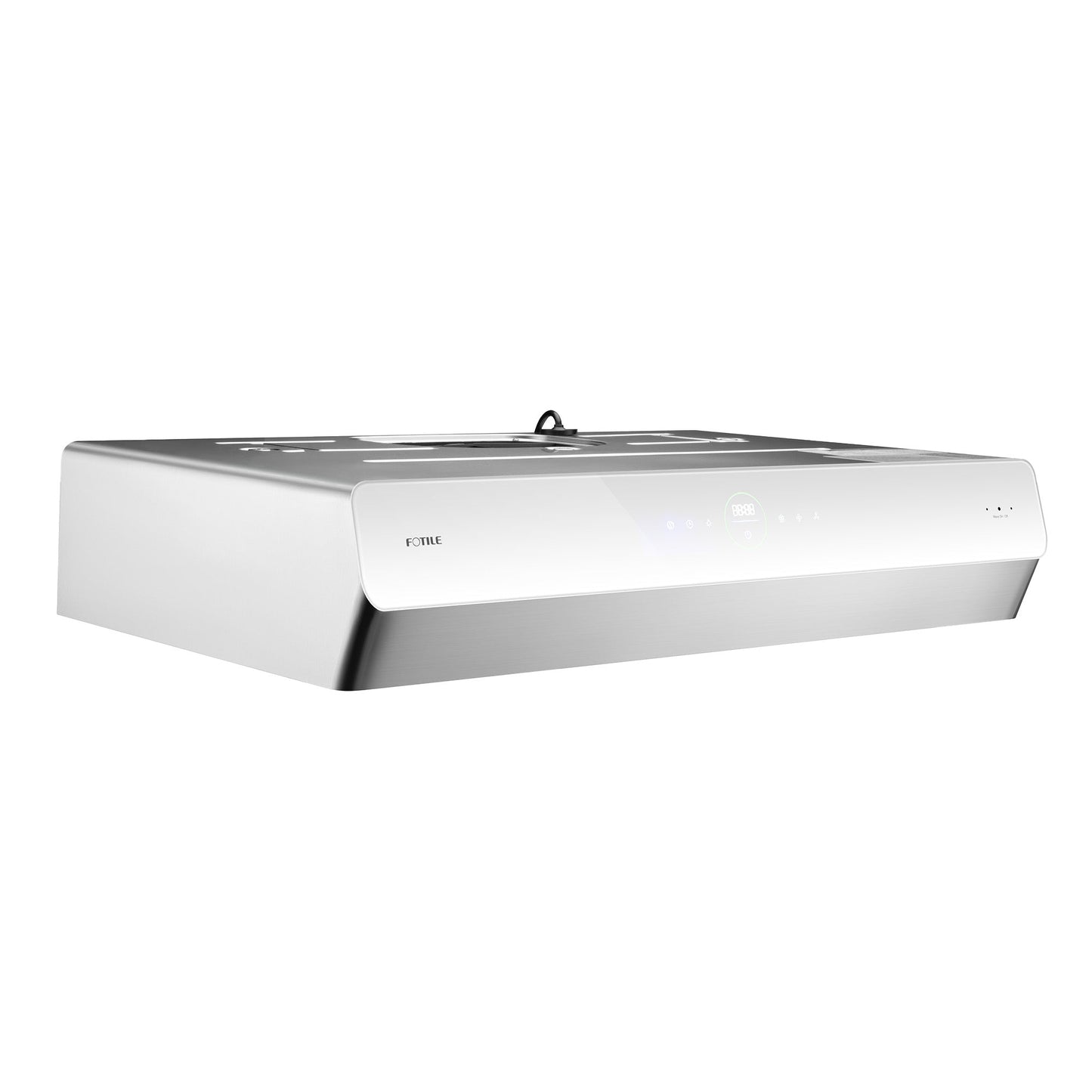

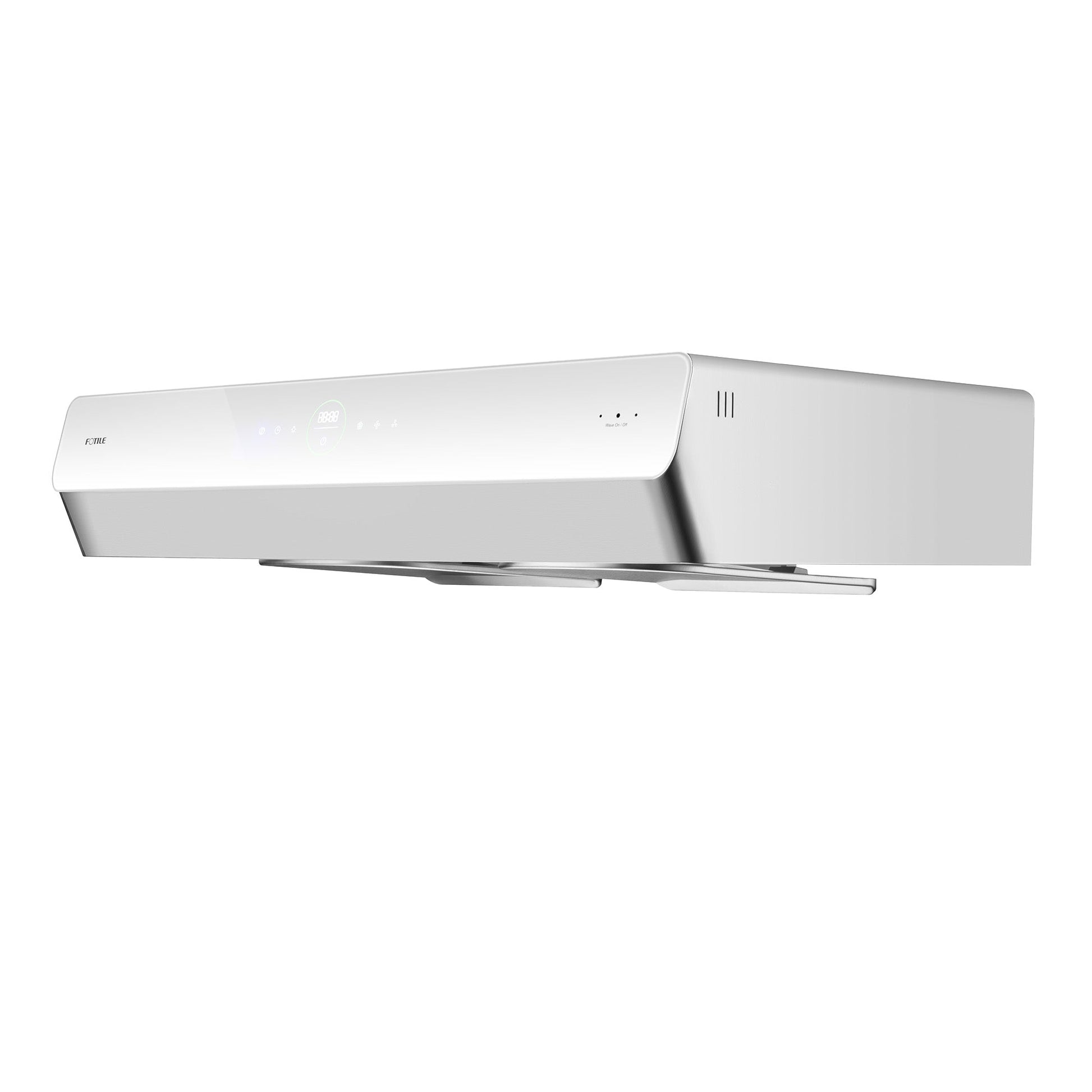

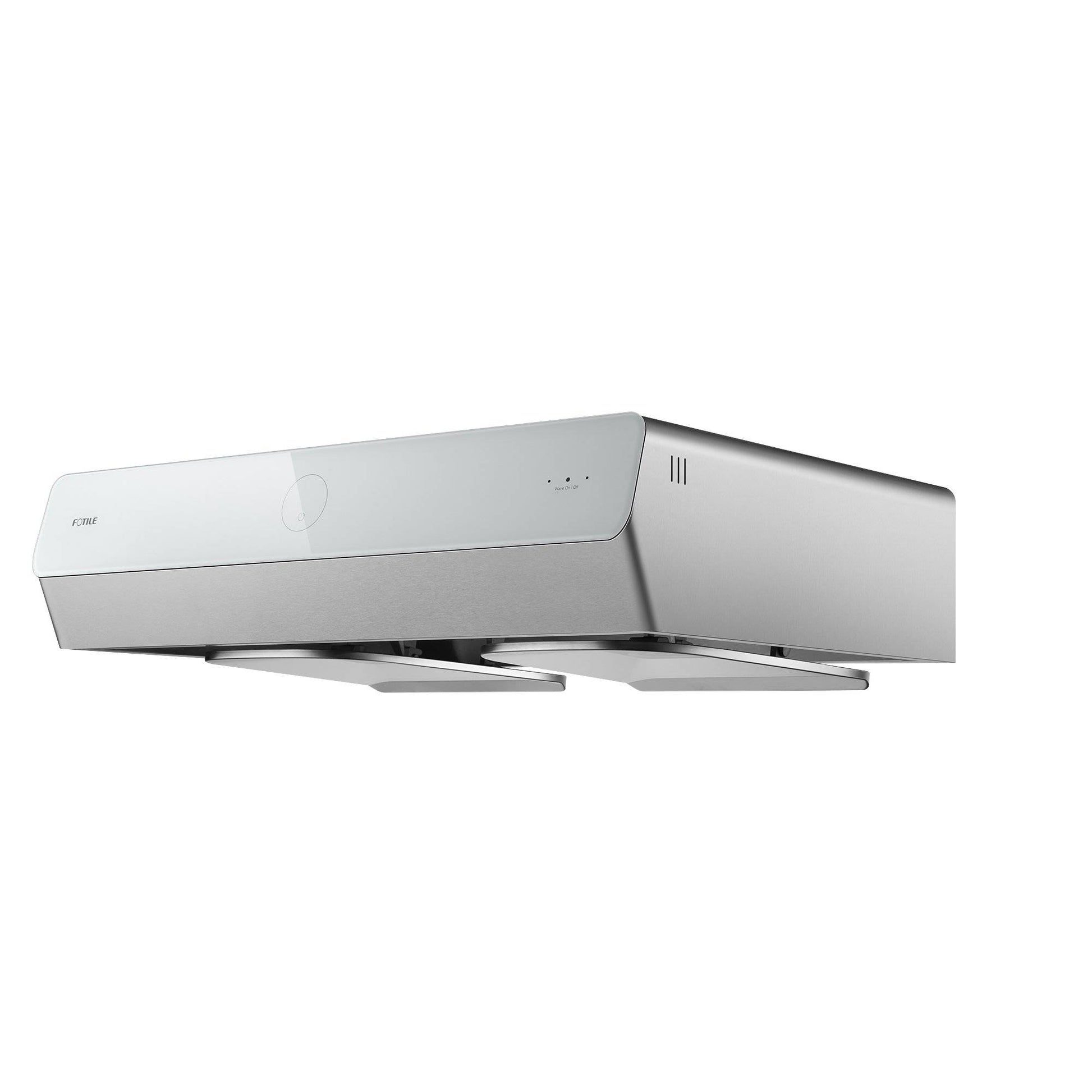

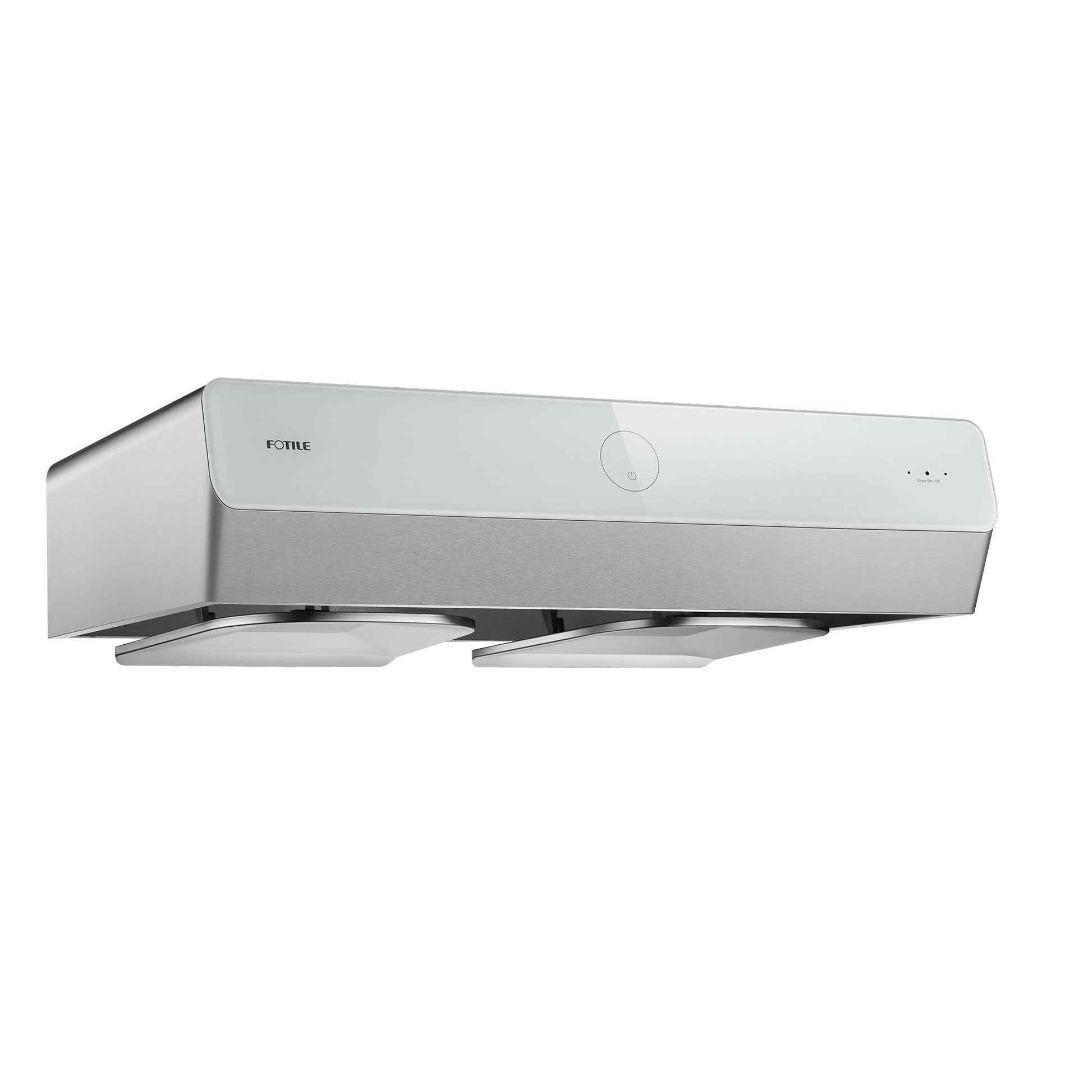

- Ultra-Slim Profile: At just over 7 inches tall for the main body, it preserves cabinet space and provides a clean, low-profile look.

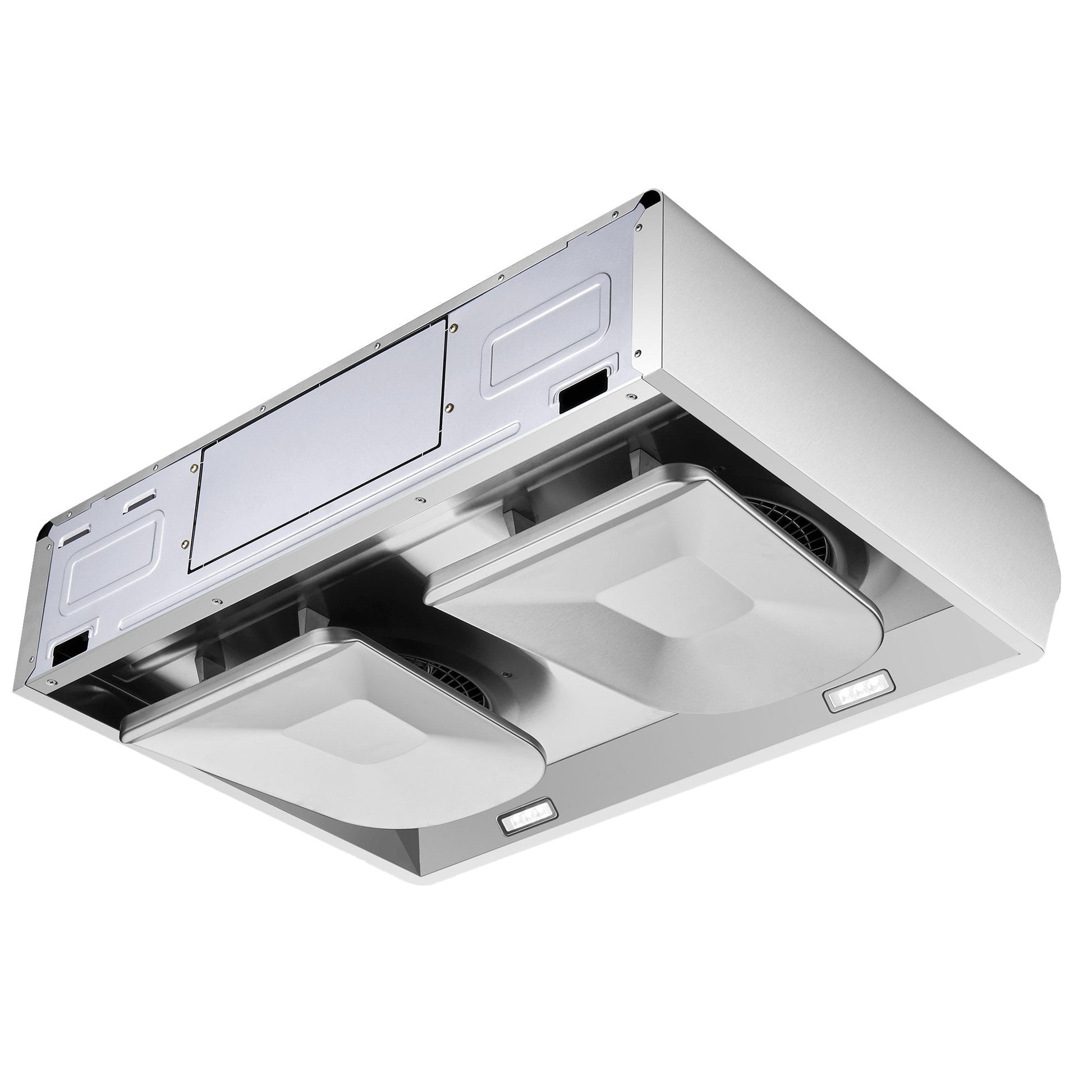

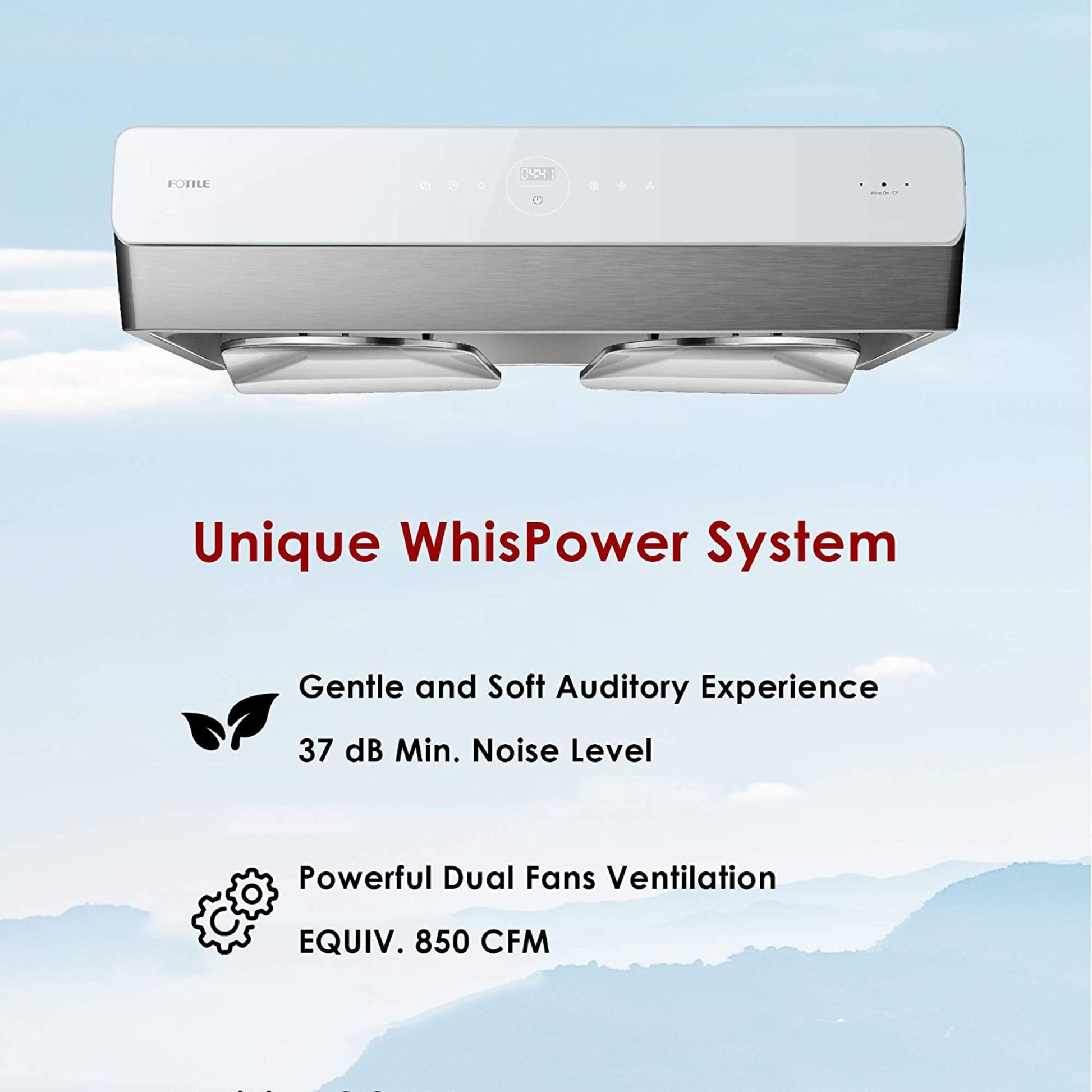

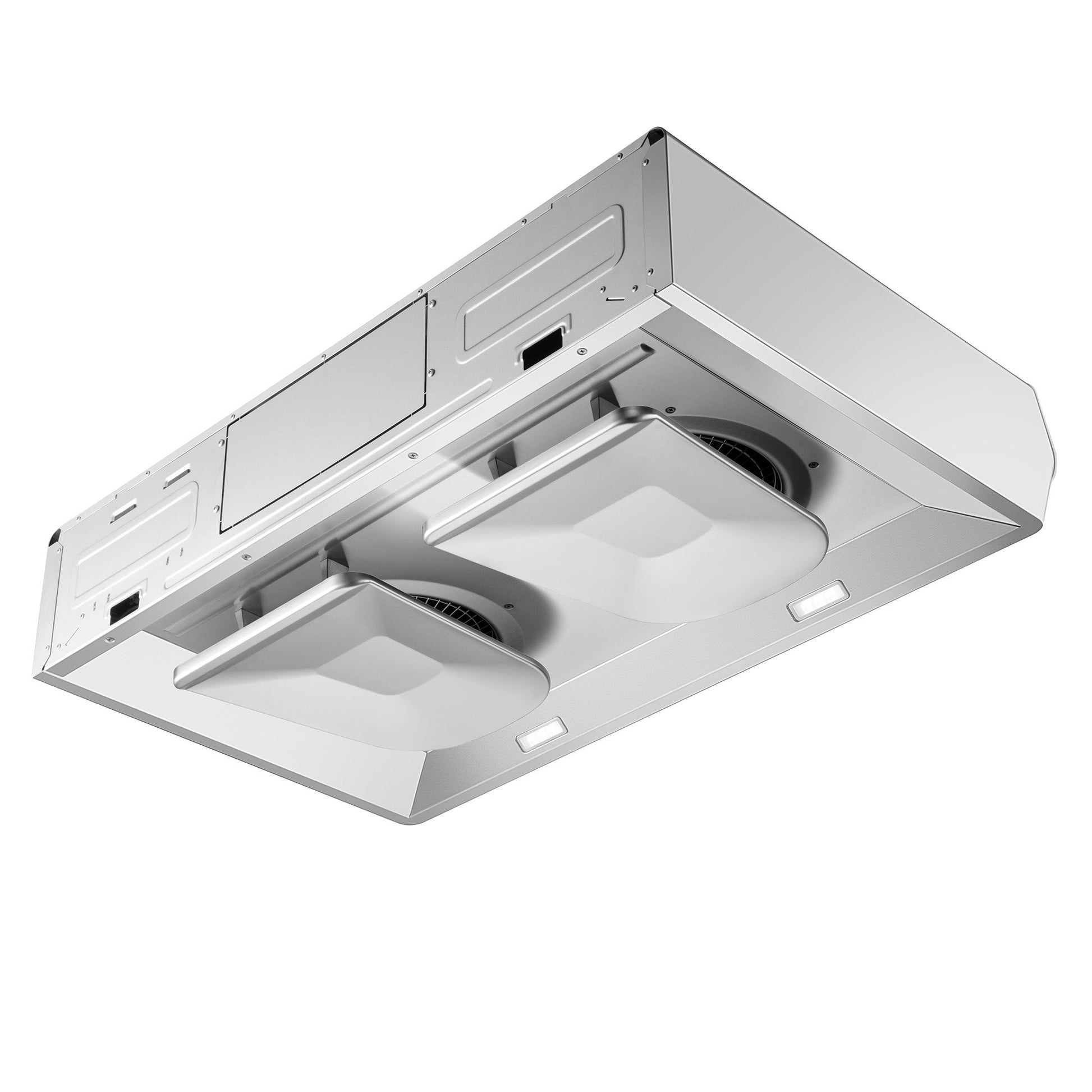

- WhisPower Dual Motors: Utilizes bionic impellers to reduce air resistance and noise while maintaining high-velocity suction.
- Multi-Shift Delay Shutoff: Options for 5, 15, or 30 minutes to clear out lingering odors after you've finished cooking.

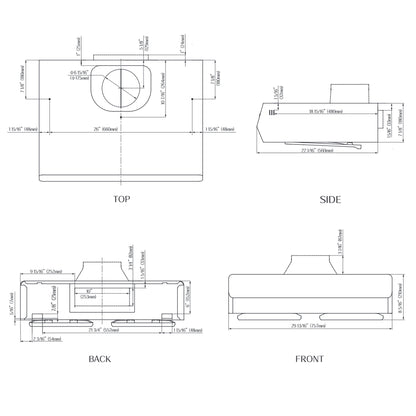

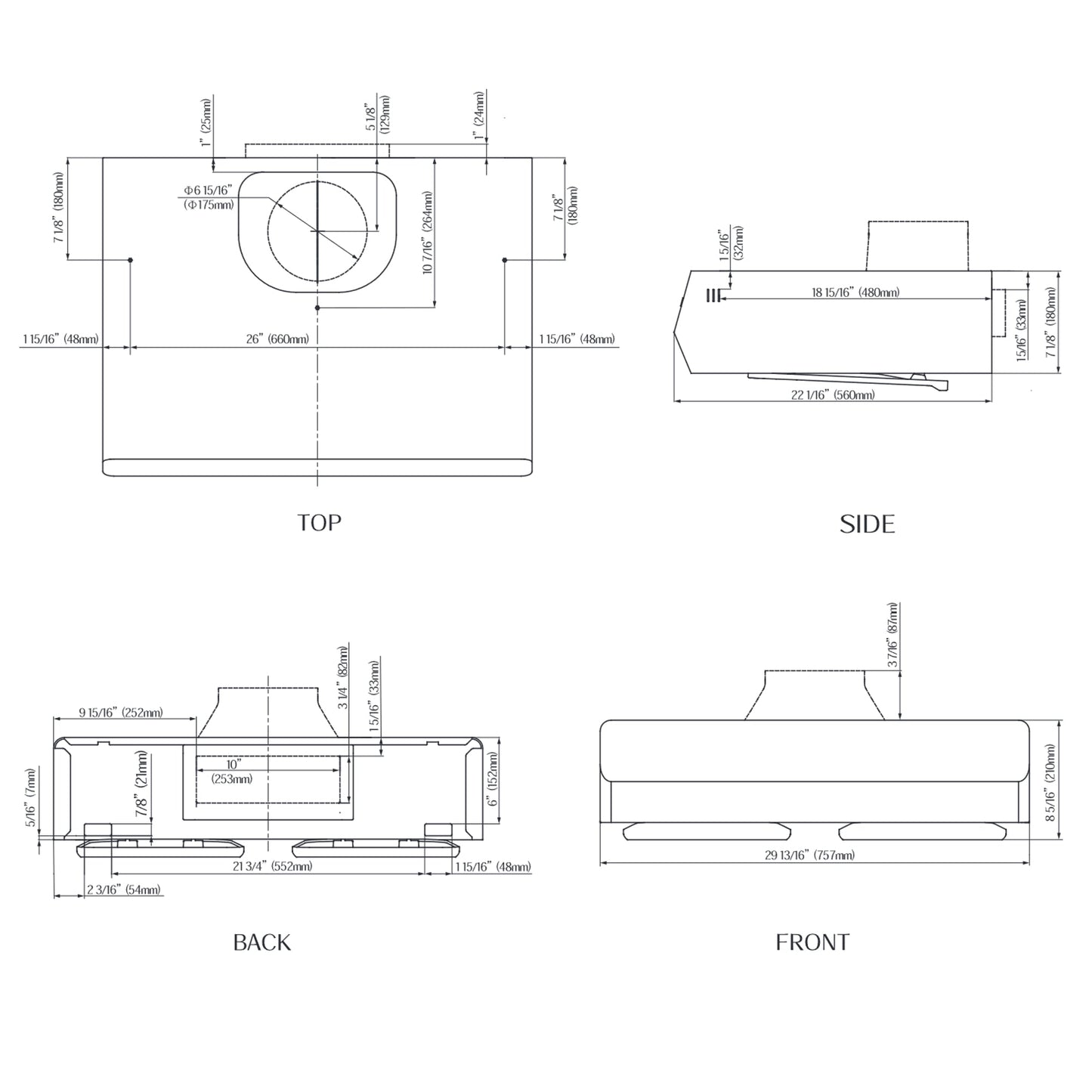

Specifications
| Feature | UQG3002 (30") | UQG3602 (36") |

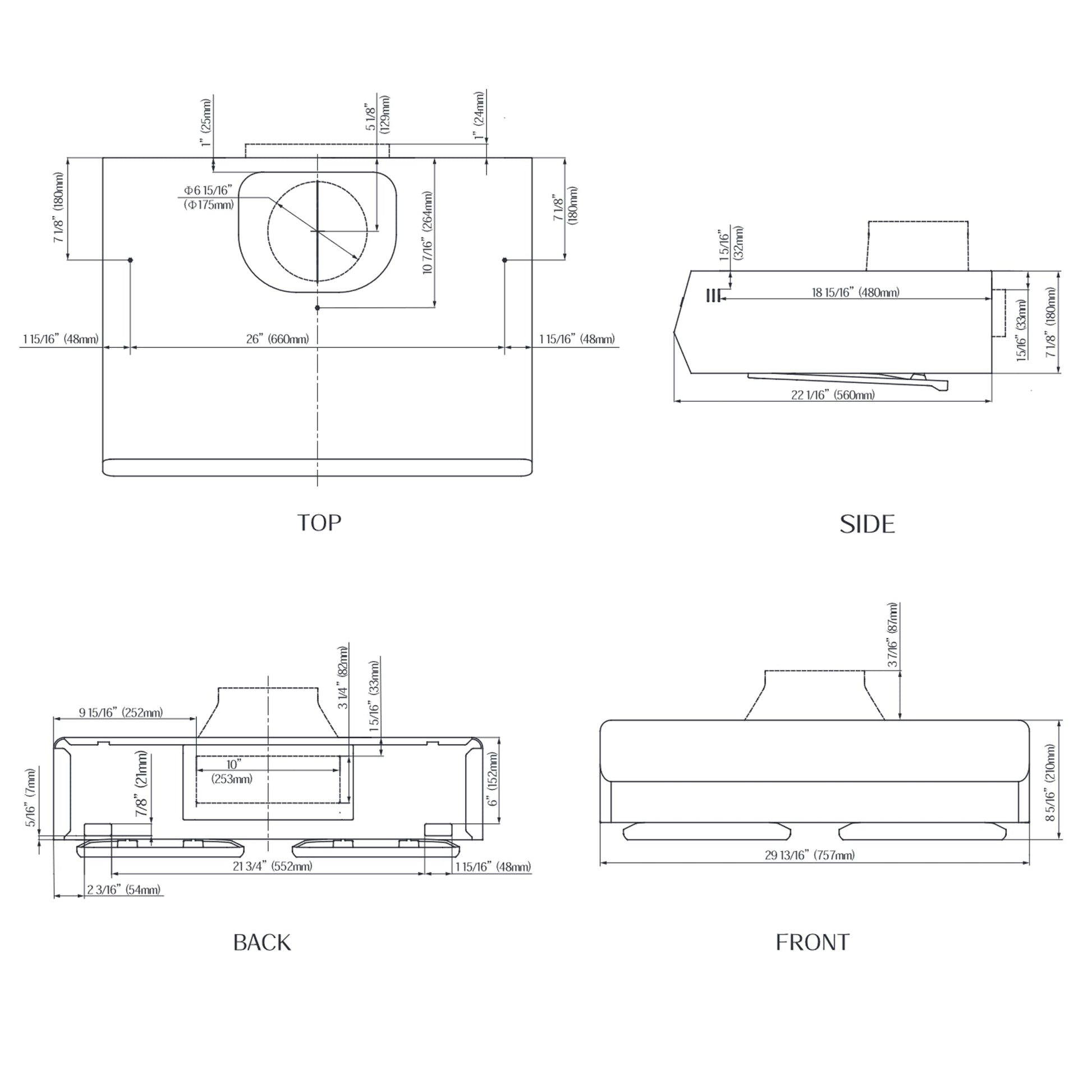

| Width | 29 13/16" | 35 3/4" |
| Installation | Under-Cabinet (Convertible) | Under-Cabinet (Convertible) |
| Max Equivalent CFM | 850* | 850* |
| Max Static Pressure | 410 Pa | 410 Pa |
| Min Noise Level | 37 - 38 dB | 37 - 38 dB |

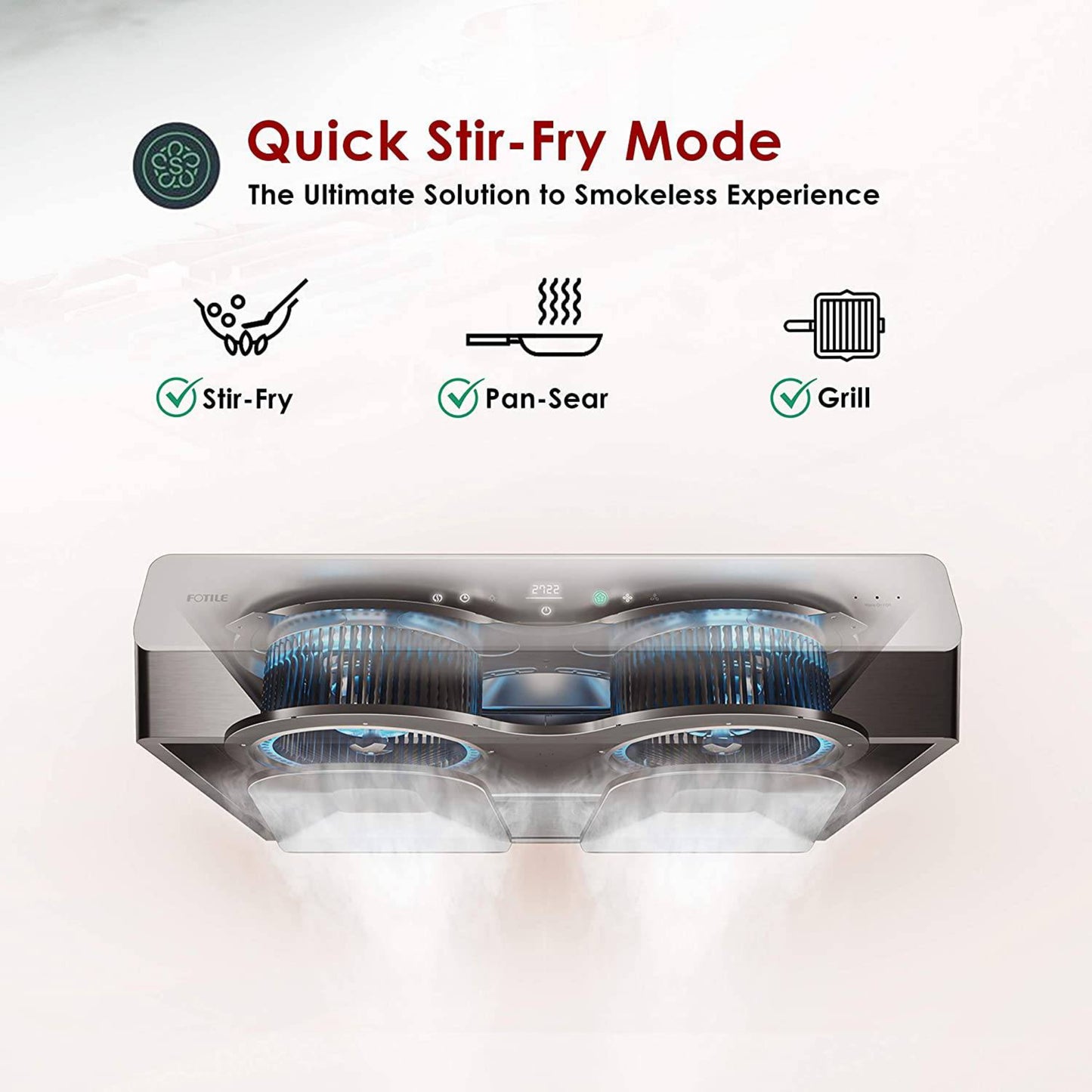

| Speed Settings | 4 Speeds (incl. Stir-Fry Mode) | 4 Speeds (incl. Stir-Fry Mode) |
| Grease Separation | 94% | 94% |

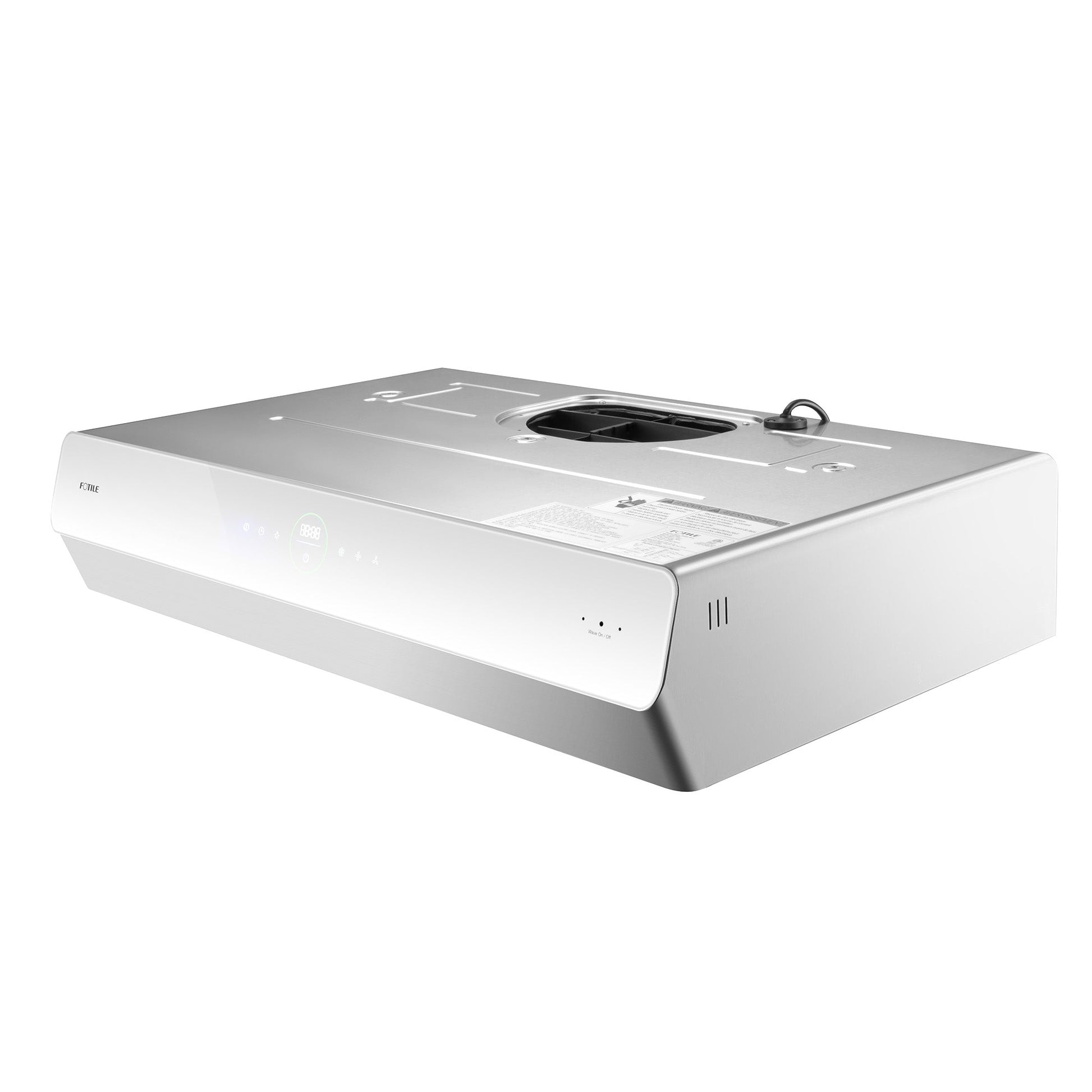

| Vent Direction | Top (7" Round) or Rear | Top (7" Round) or Rear |

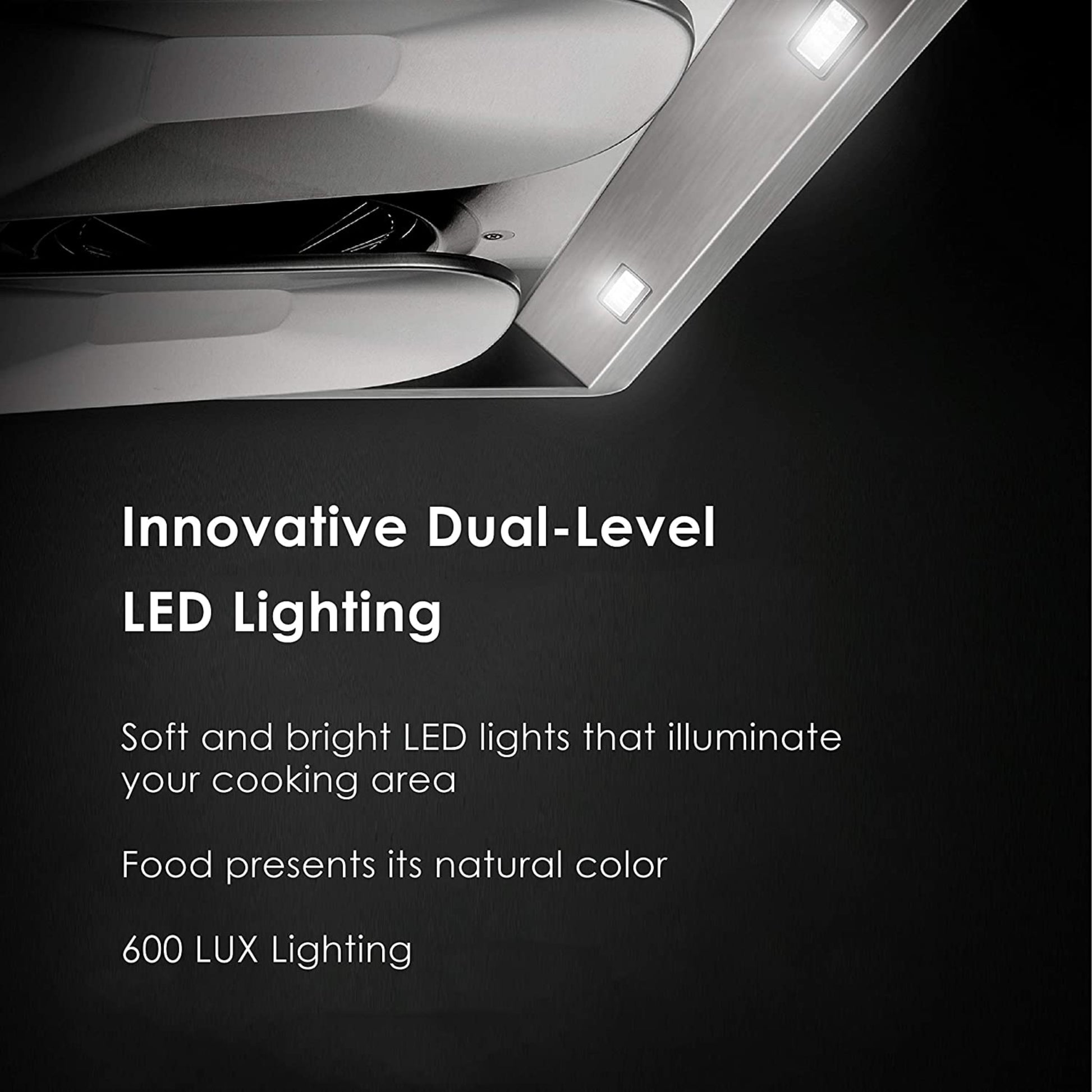

| Illumination | Dual-Level LED (avg. 600 LUX) | Dual-Level LED (avg. 600 LUX) |
| Finish | Stainless Steel with Glass Trim | Stainless Steel with Glass Trim |
*Data on this page are results of ducted range hoods. There is no standard evaluation system for recirculation, nor is there a standard test method.
*Please note: The actual product color may vary slightly from the images shown due to differences in lighting, screen settings, and product finishes.
