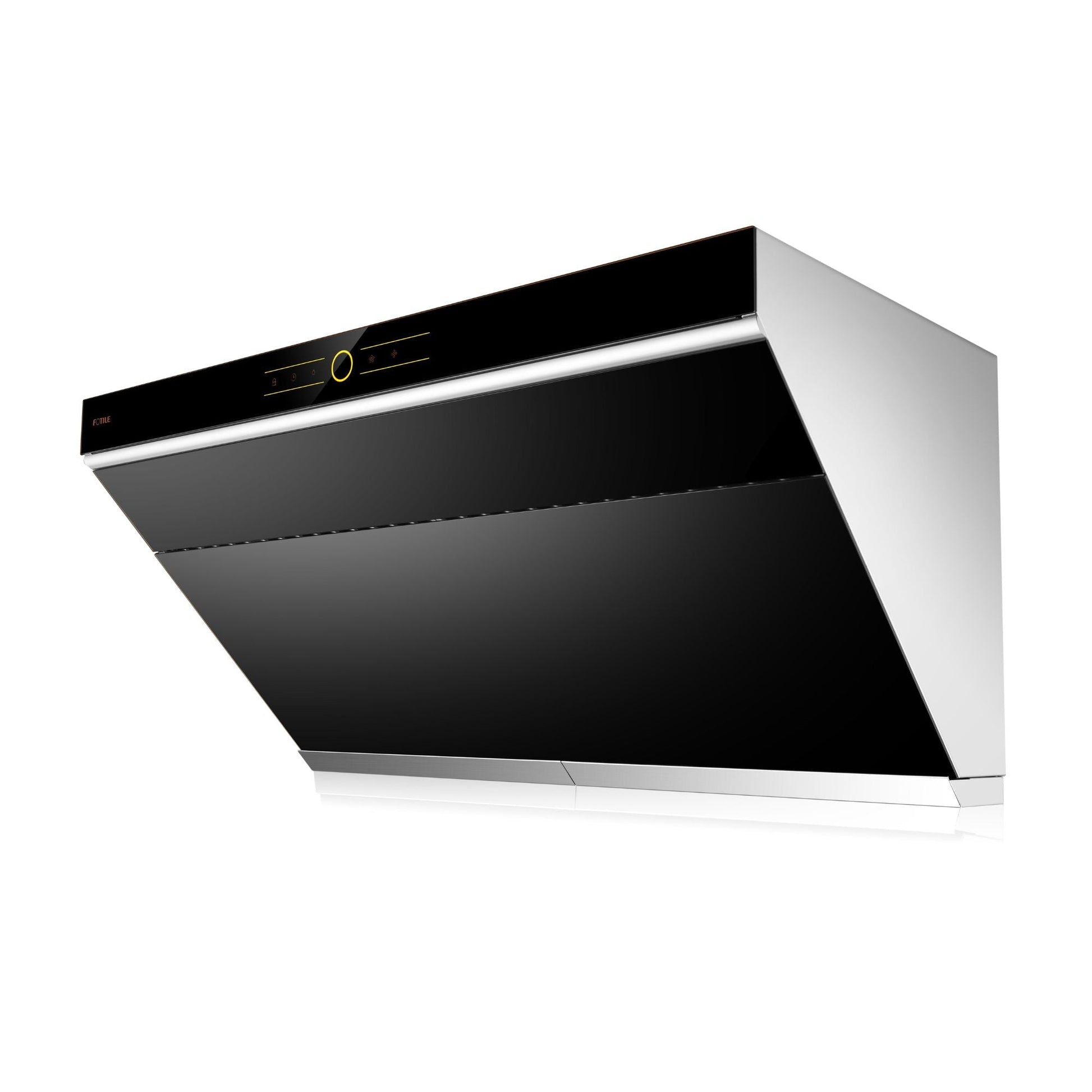

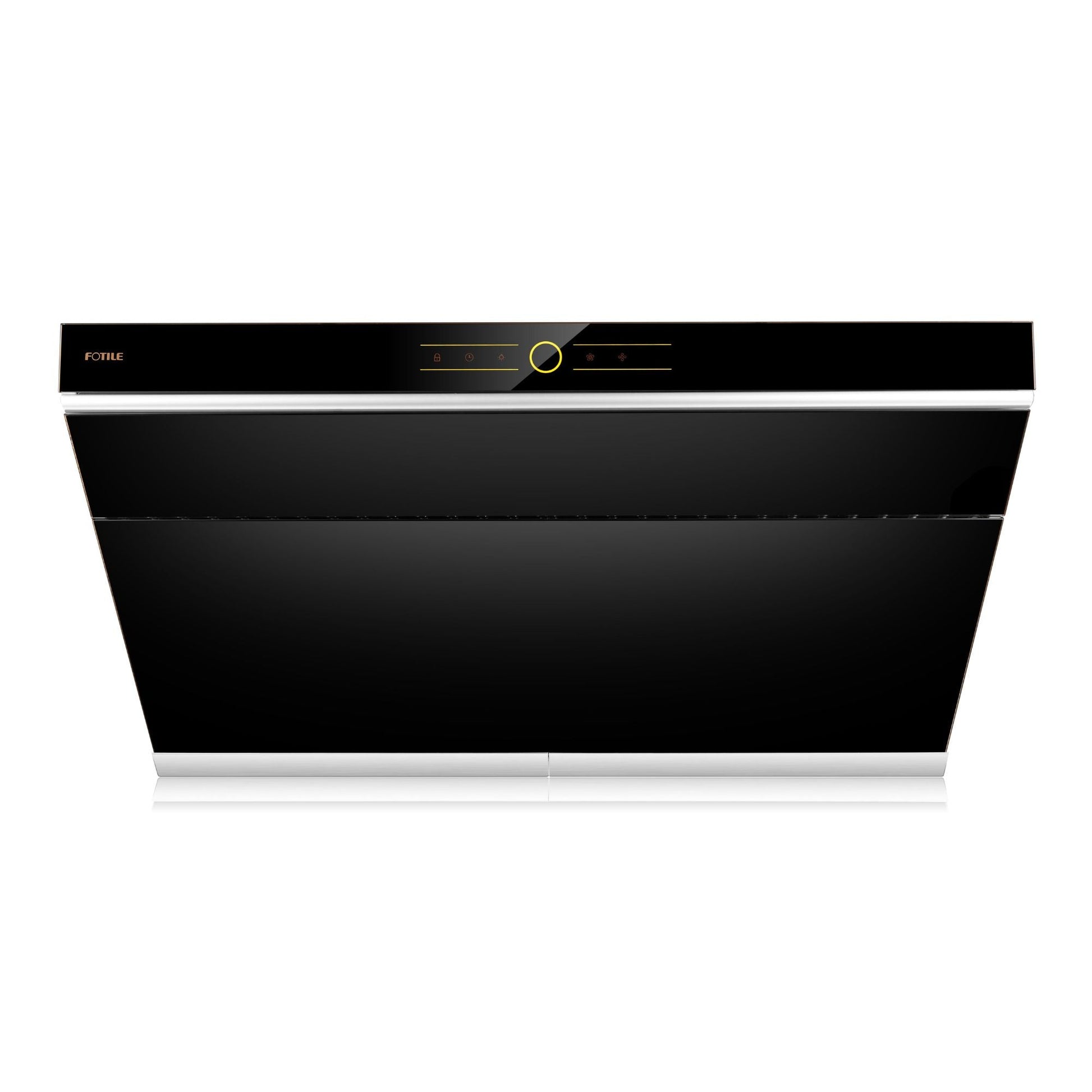

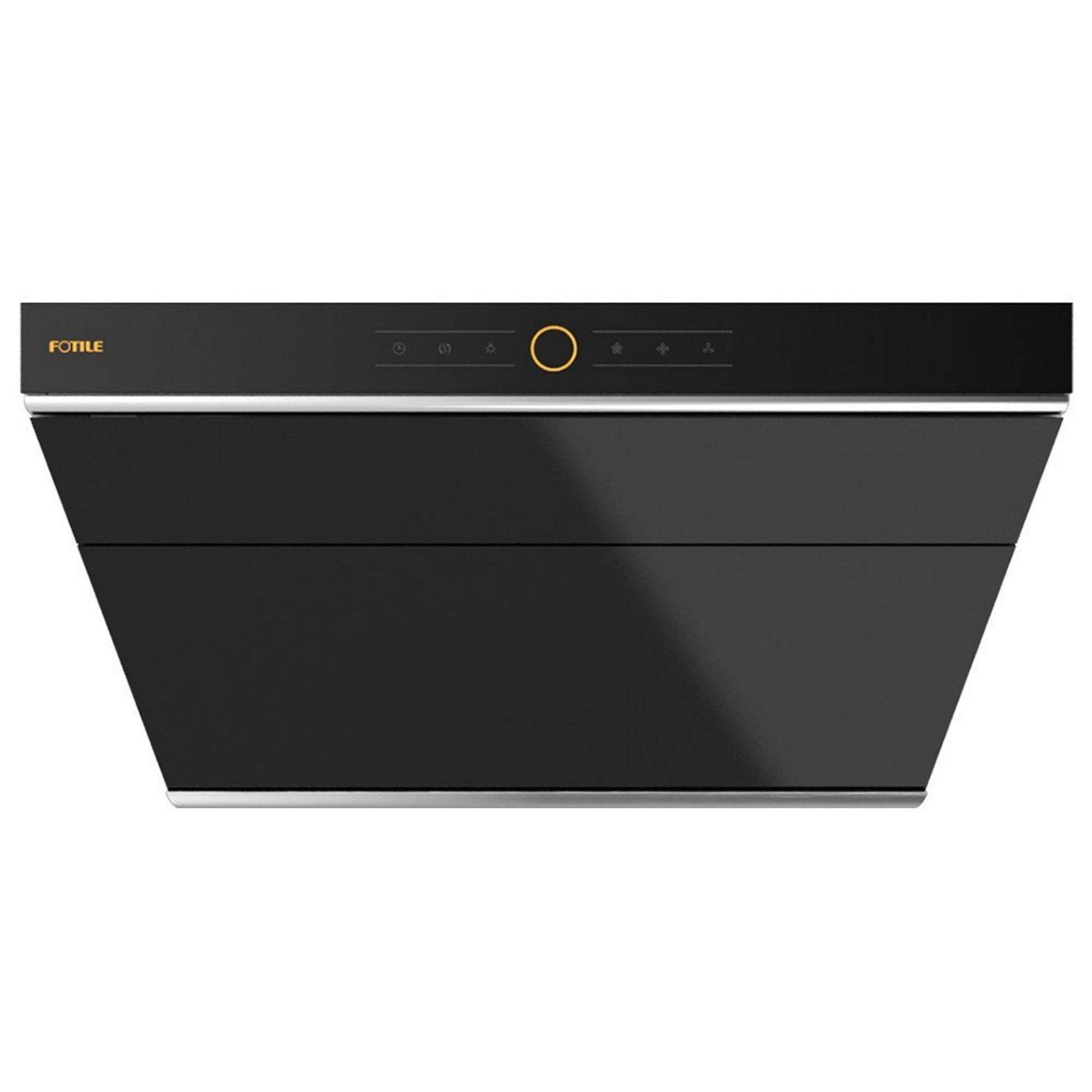

The FOTILE Classic Series (JQG7501 / JQG9001) is a high-performance, side-draft range hood designed specifically for heavy-duty cooking, such as stir-frying and searing. Its unique "Slant Vent" design places the intake closer to the cooking surface than traditional hoods, capturing smoke before it has a chance to spread throughout the kitchen.
The JQG7501 (30") and JQG9001 (36") are engineered with a 90° automatic open capture shield that creates a massive "fume collection zone." By utilizing the WhisPower System, FOTILE leverages the Venturi effect to accelerate airflow, resulting in an "Equivalent CFM" that rivals much louder, traditional 1000+ CFM hoods while remaining significantly quieter.

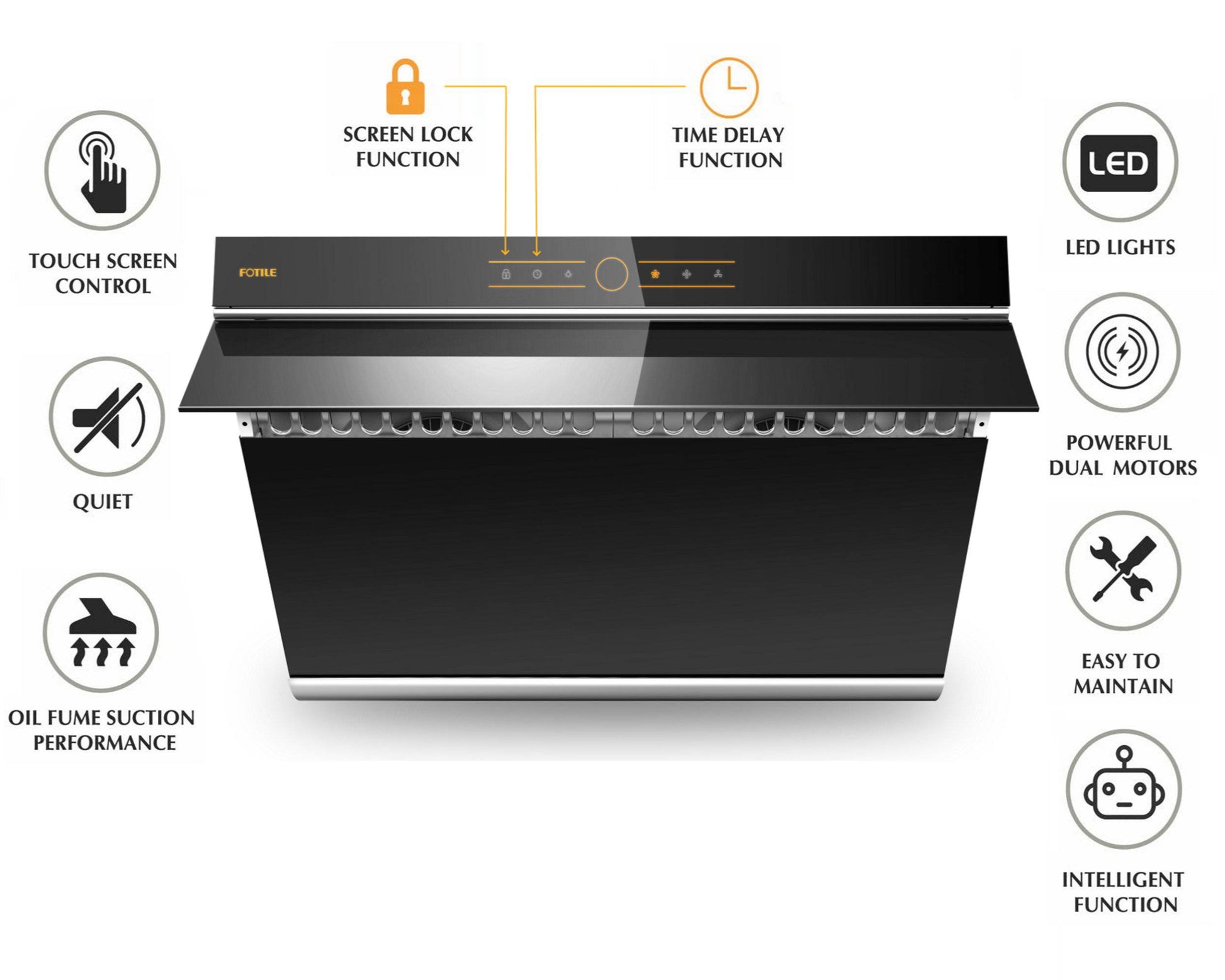

Key Features

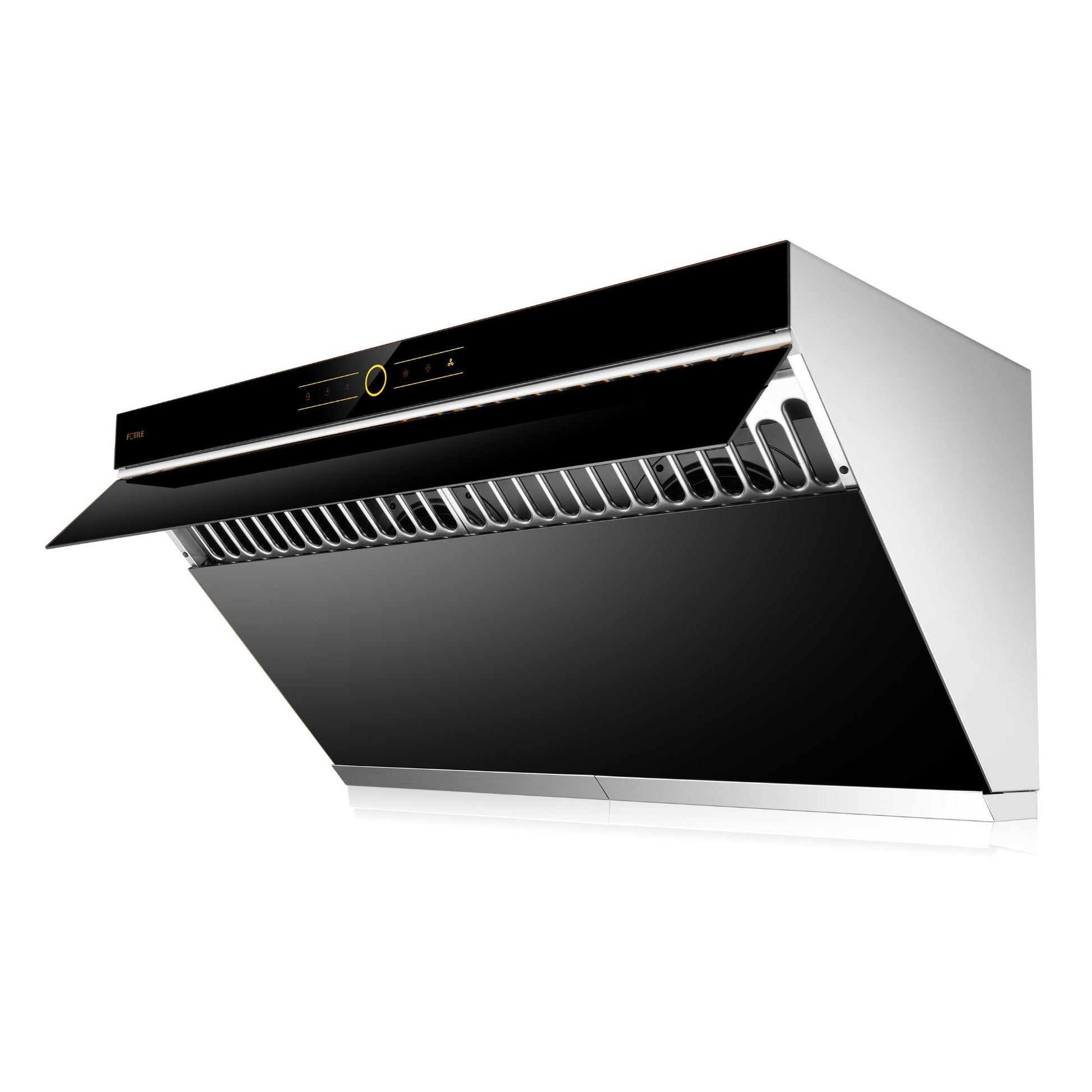

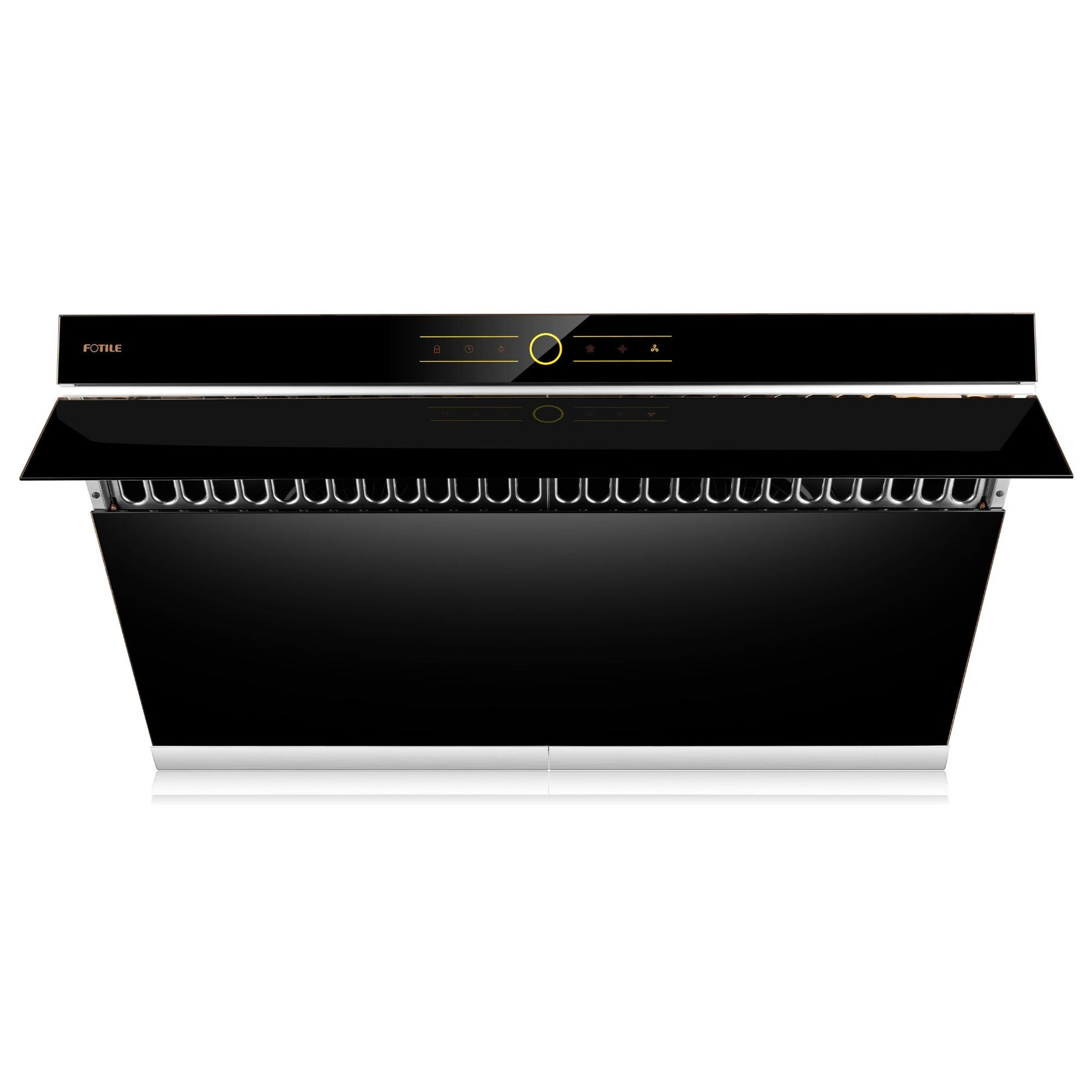

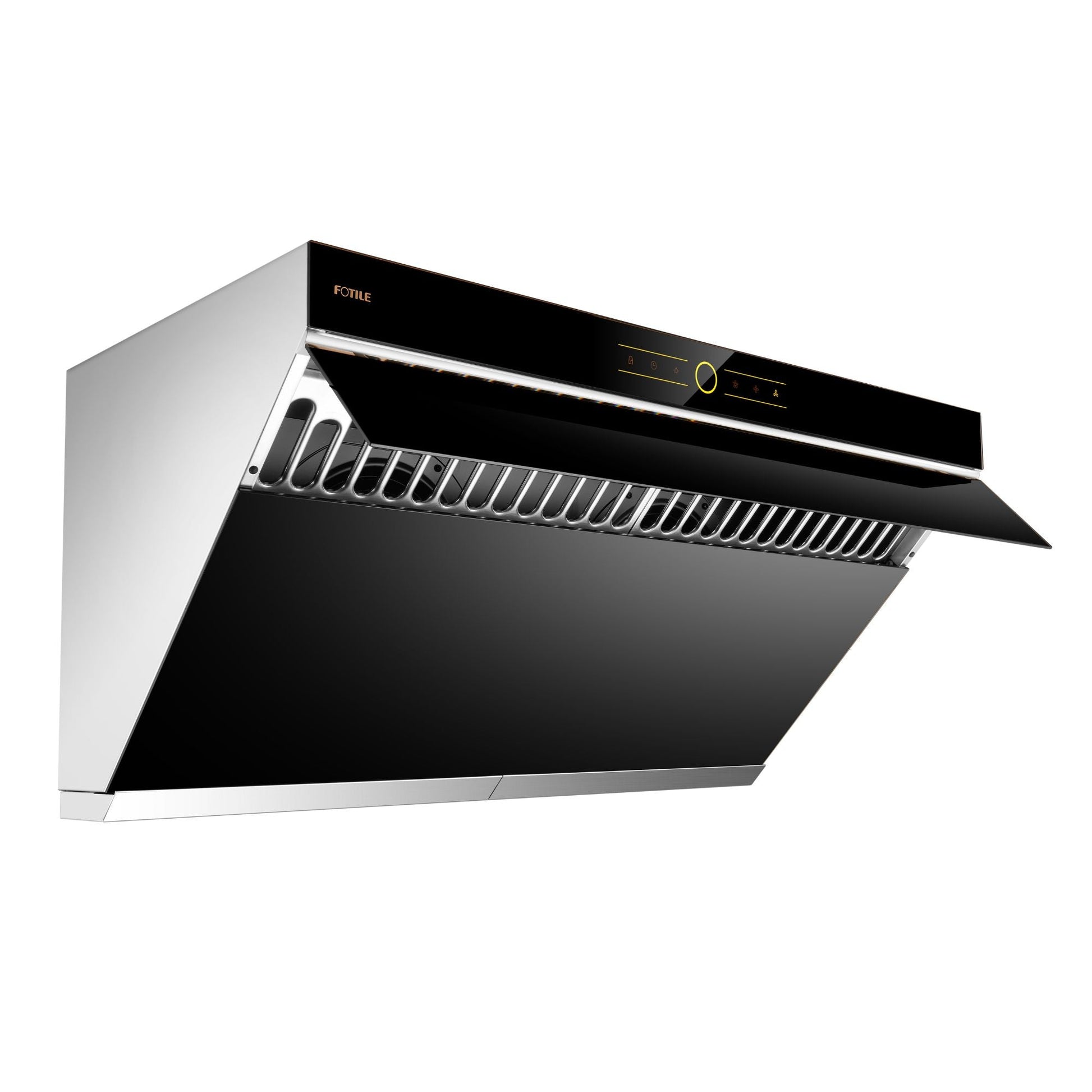

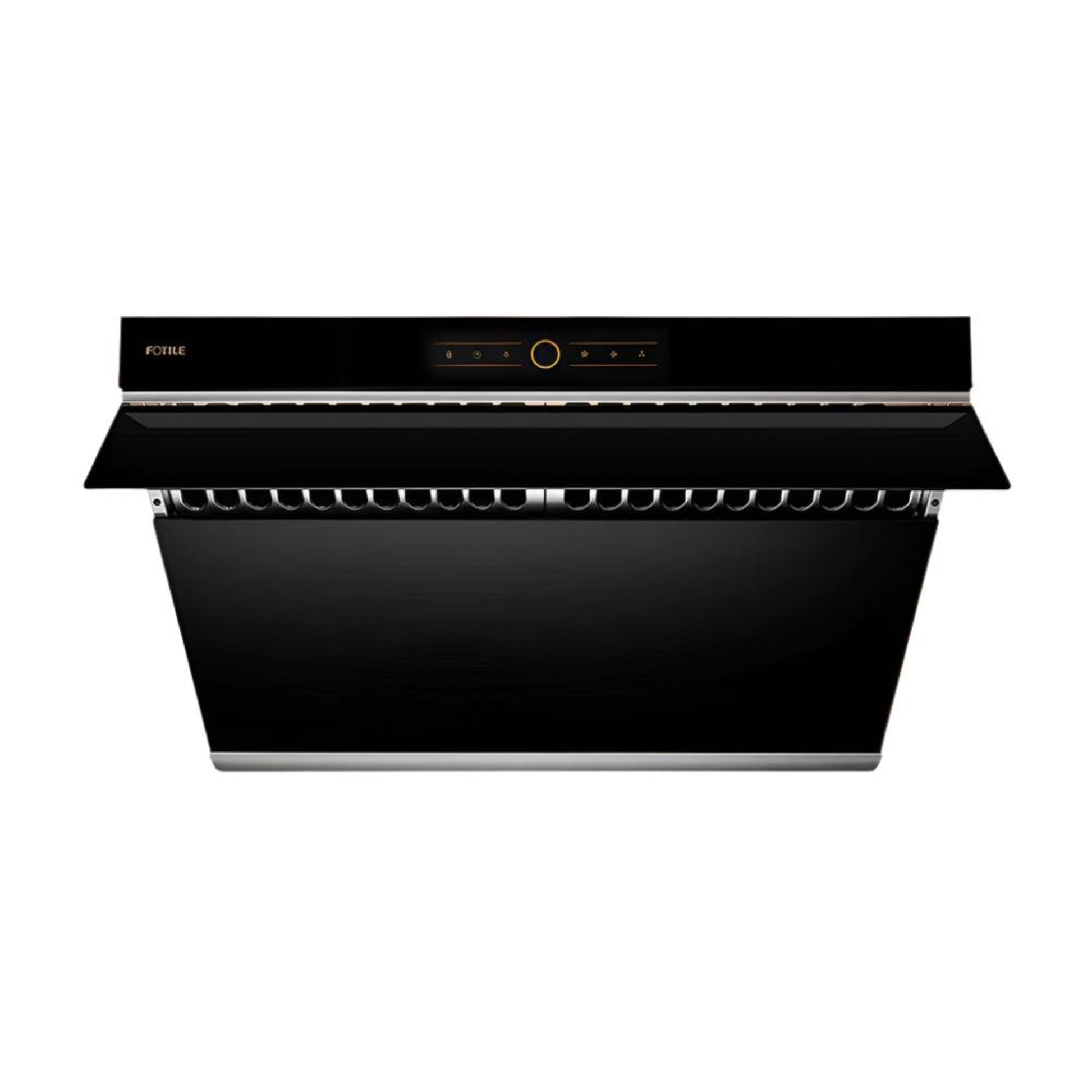

- 90° Automatic Capture Shield: The motorized baffle plate opens automatically when the unit is powered on, creating a physical barrier that prevents smoke from escaping into the room.
- Proximity Suction: The slanted design puts the intake significantly closer to the burners (compared to overhead hoods), capturing grease and odors at the source.
- WhisPower System: Combines dual AC centrifugal motors with an aerodynamic internal design to maximize suction while minimizing noise.
- Touch Screen Controls: An elegant, easy-to-clean glass touch panel with 3-speed settings.
- 2-Minute Delay Shutoff: Keeps the fan running for 2 minutes after cooking ends to ensure all lingering odors are exhausted.
- Maintenance Made Easy: Features a large, detachable oil collection cup and a dishwasher-safe folding filter, reducing the frequency of cleaning.
- Screen Lock Function: Allows you to wipe down the glass touch panel without accidentally activating the fans or lights.
Specifications
| Feature | JQG7501 (30") | JQG9001 (36") |

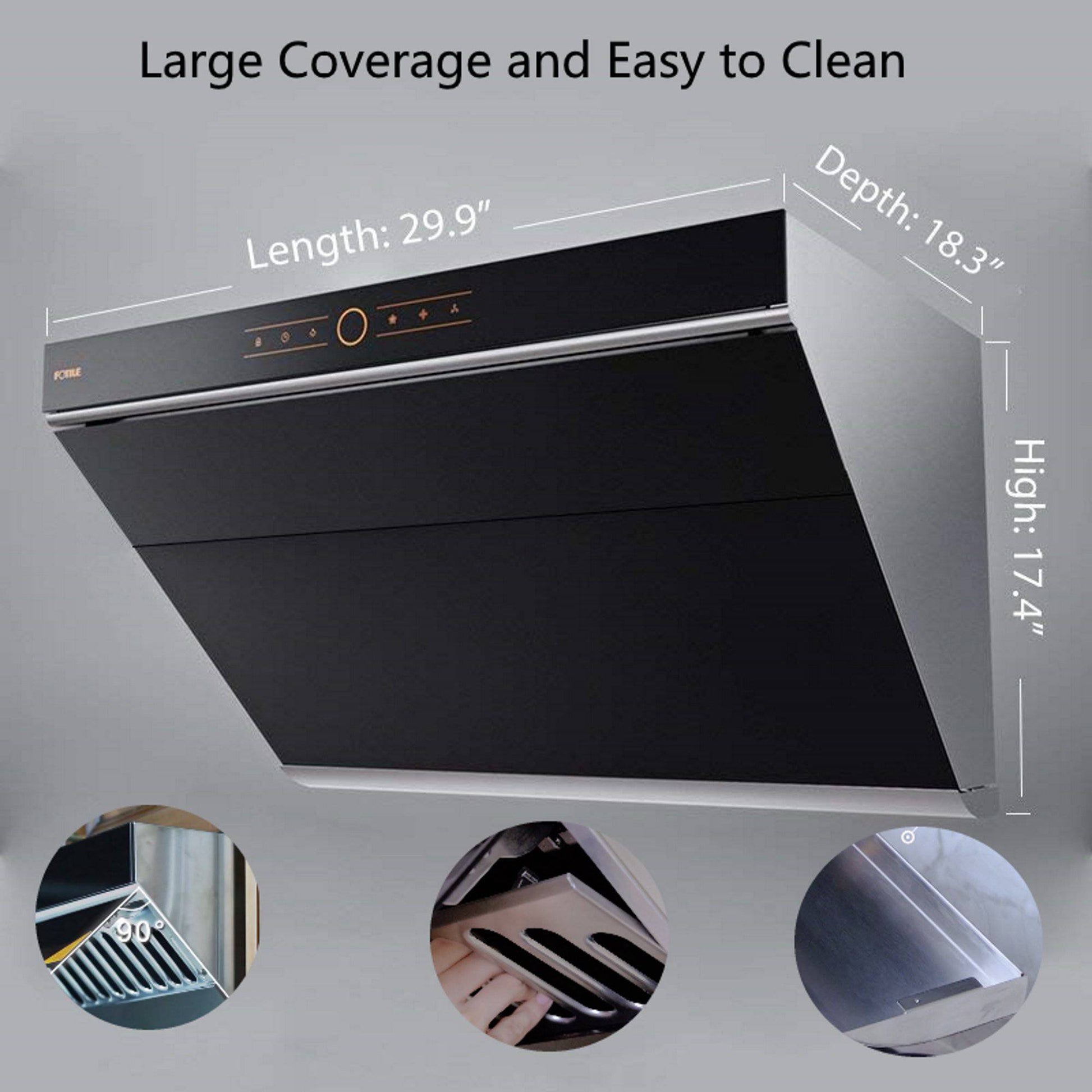

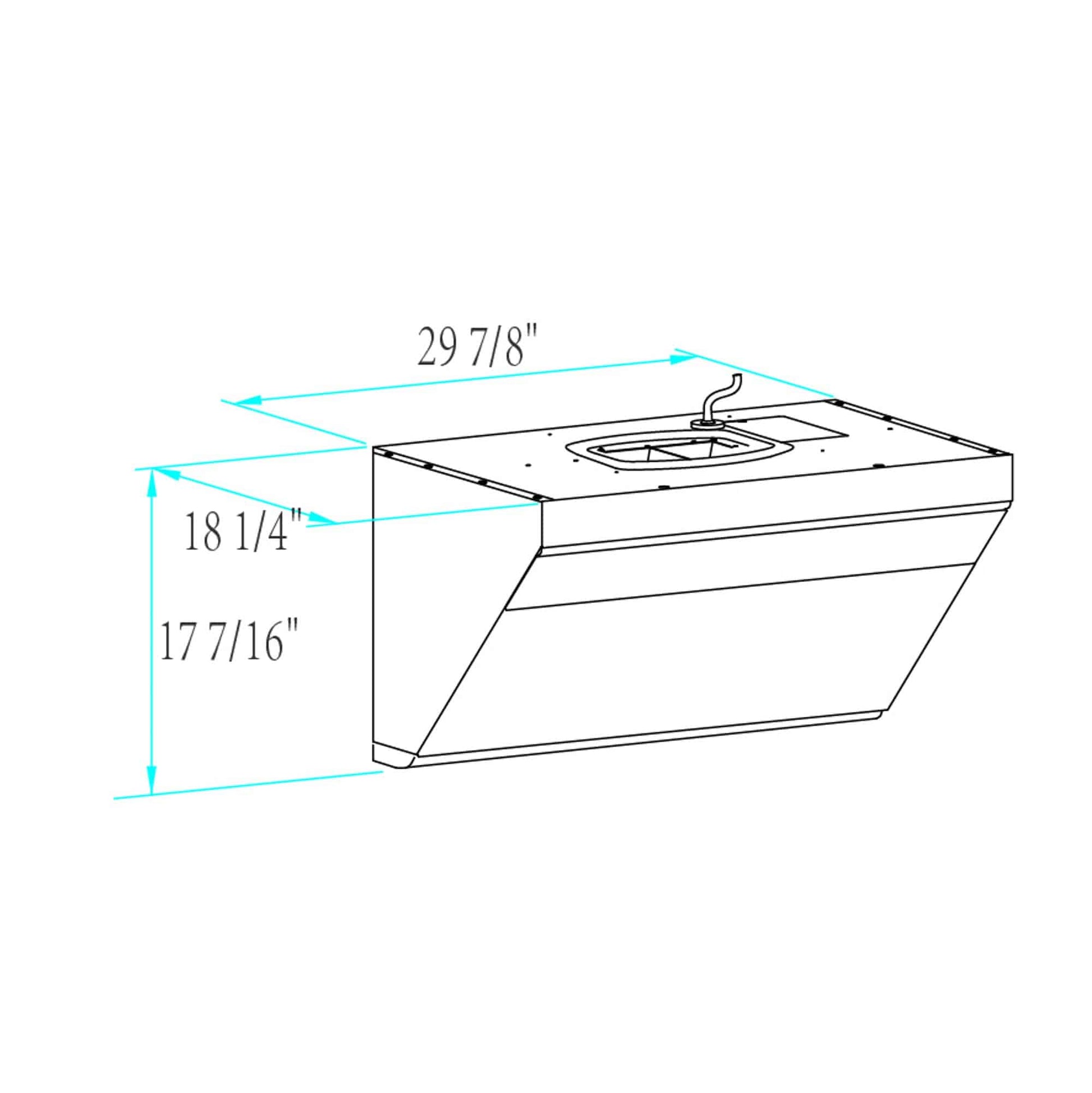

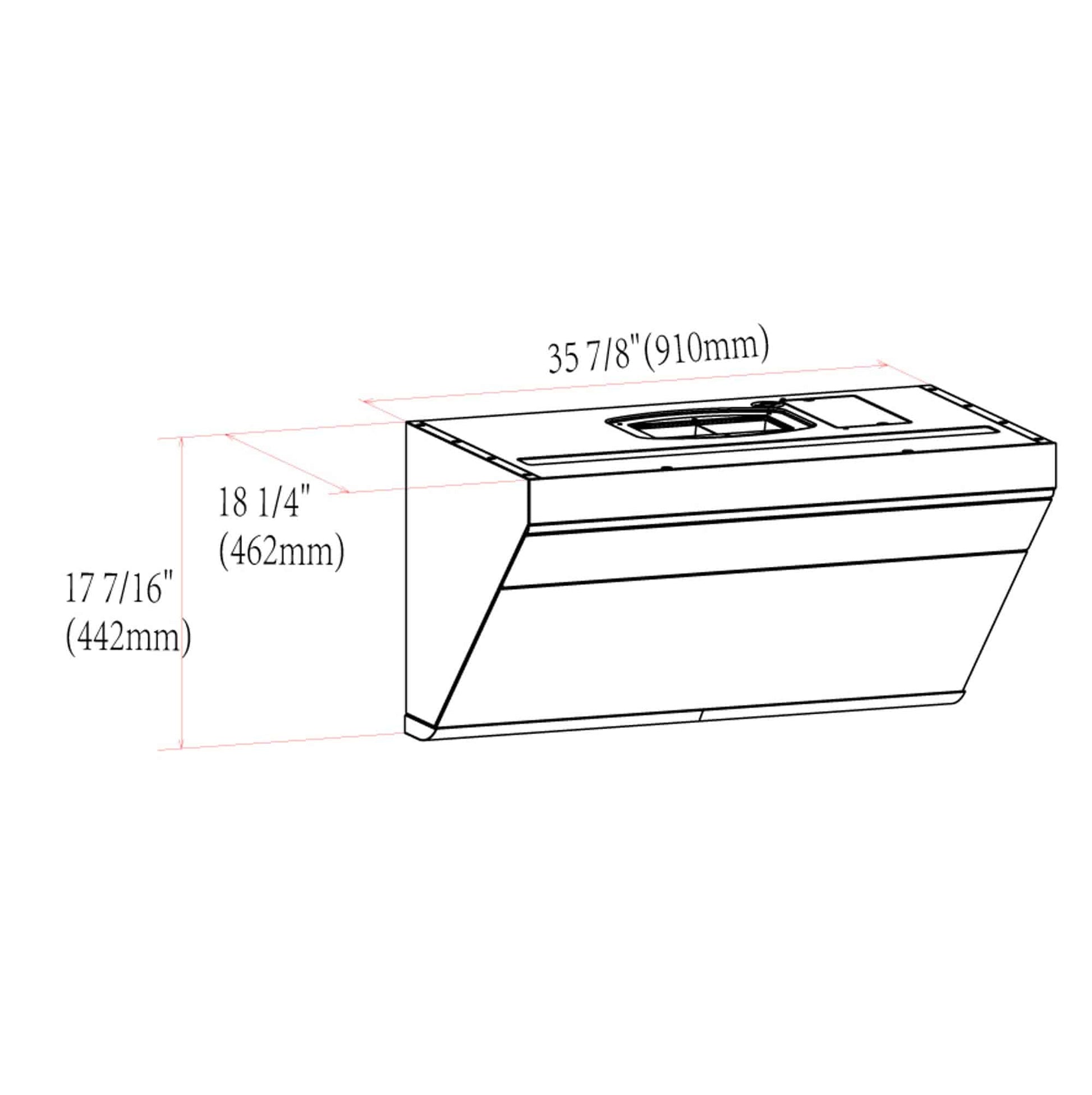

| Width | 29 7/8" | 35 7/8" |

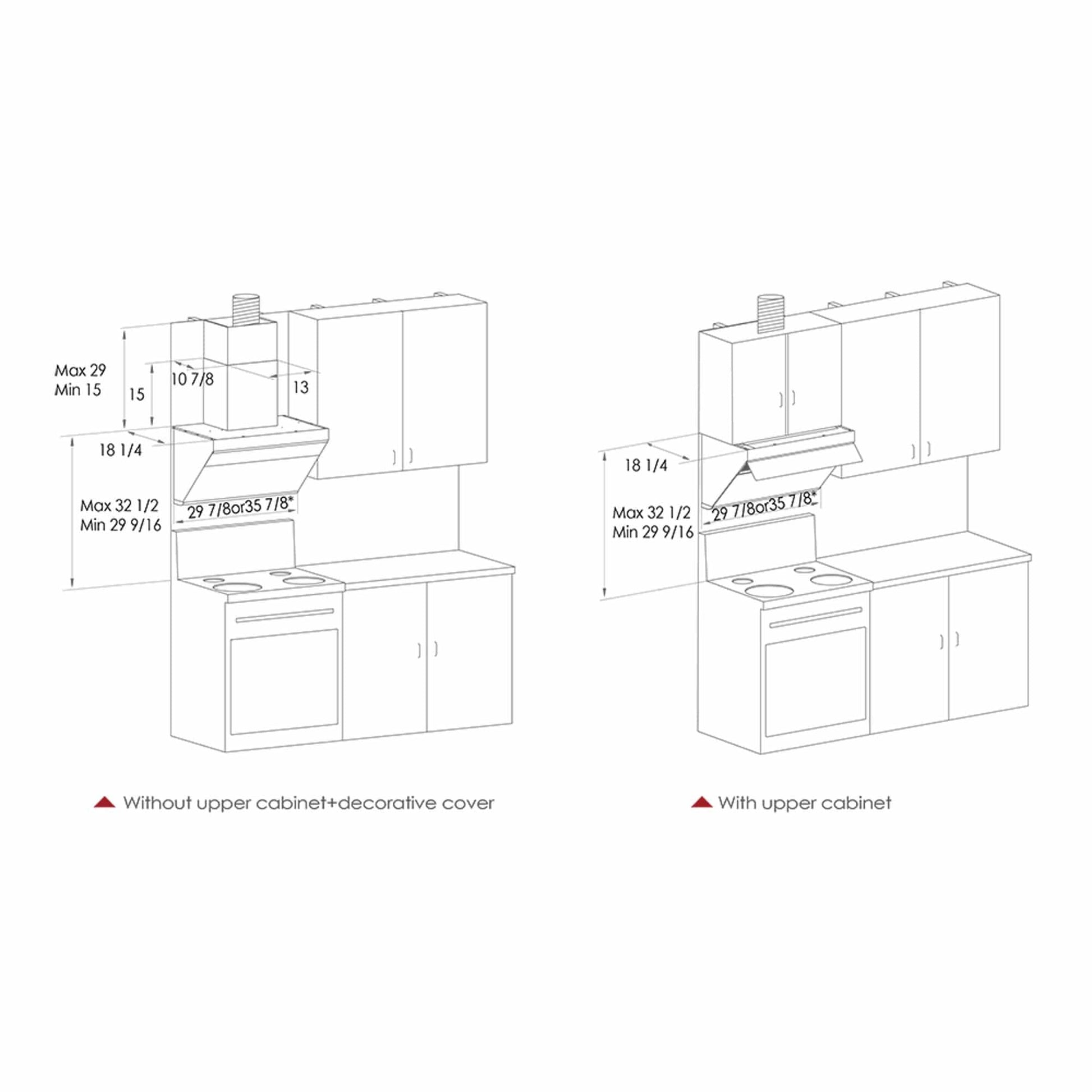

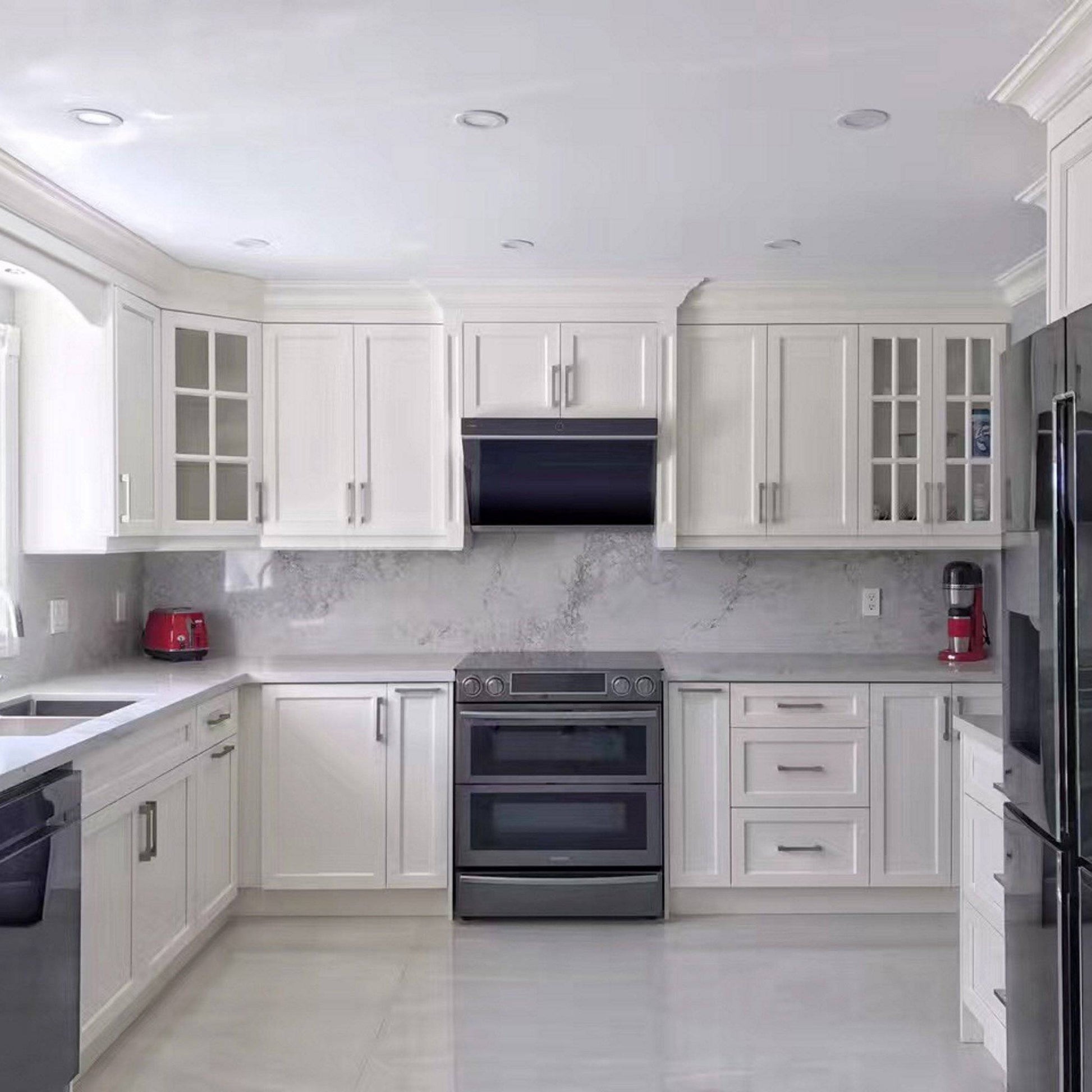

| Installation | Under-Cabinet or Wall Mount | Under-Cabinet or Wall Mount |
| Max Equivalent CFM | 850* | 850* |
| Noise Level | 39dB (Min) / 54.3dB (Max) | 39dB (Min) / 54.3dB (Max) |
| Coverage Area | 6 sq. ft. (4-5 burners) | 7.2 sq. ft. (5-6 burners) |
| Motors | Dual AC Centrifugal Motors | Dual AC Centrifugal Motors |
| Filtration | 95% Grease / 98% Odor | 95% Grease / 98% Odor |

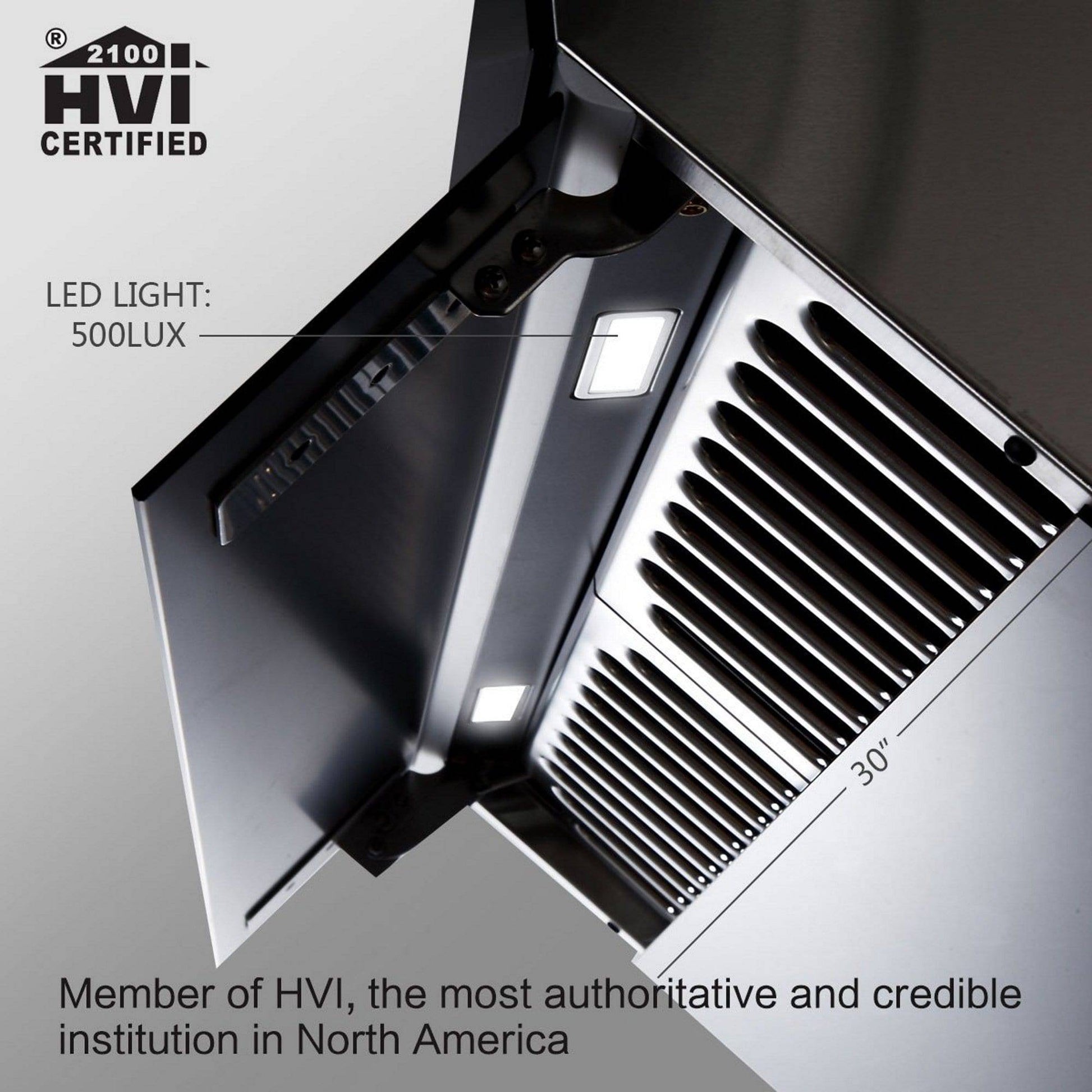

| Illumination | Dual 3W LED Lights | Dual 3W LED Lights |
| Duct Size | 6" Round (Top Vent) | 6" Round (Top Vent) |
| Finish | Black or Grey Tempered Glass | Black or Grey Tempered Glass |
*Please note: The actual product color may vary slightly from the images shown due to differences in lighting, screen settings, and product finishes.
