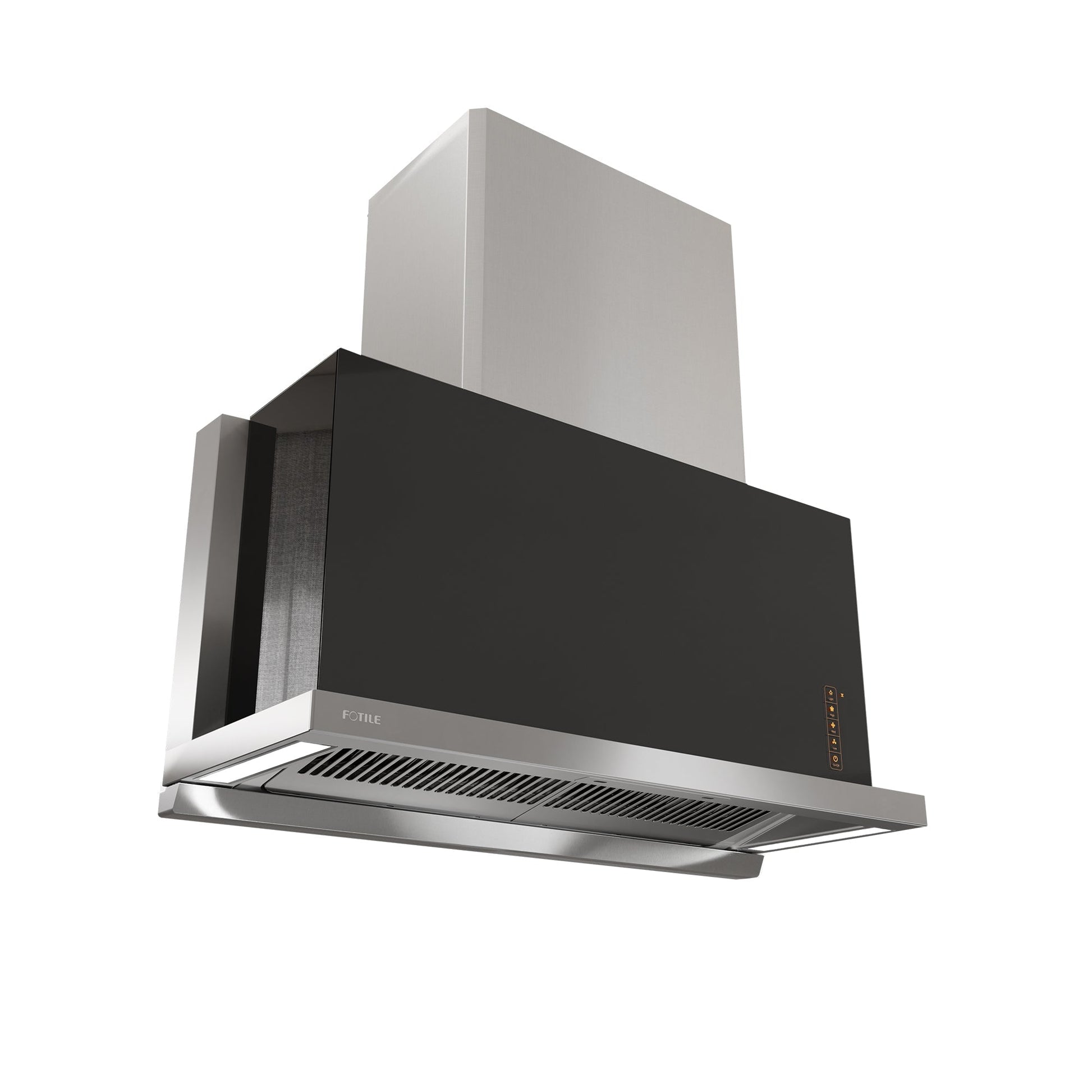

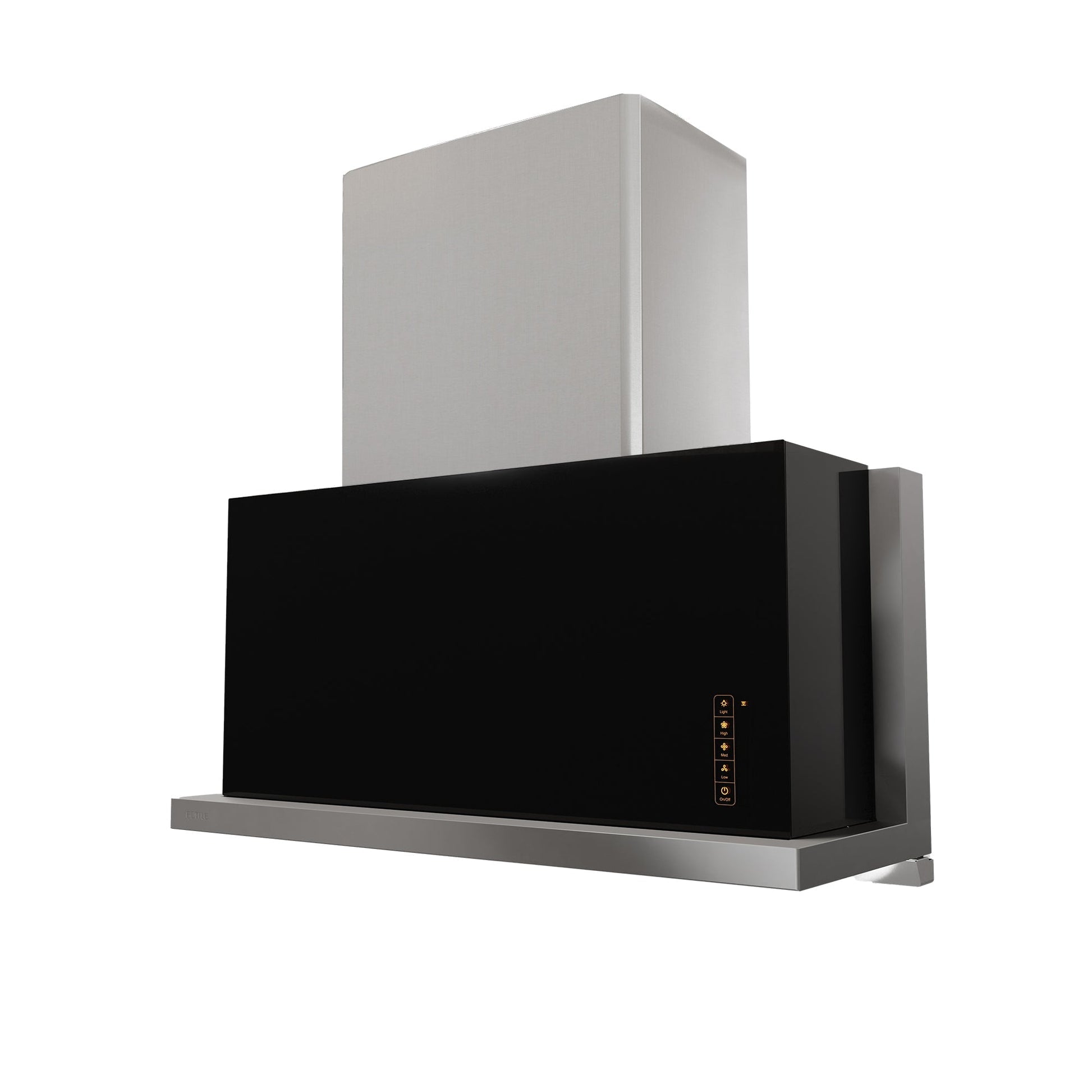

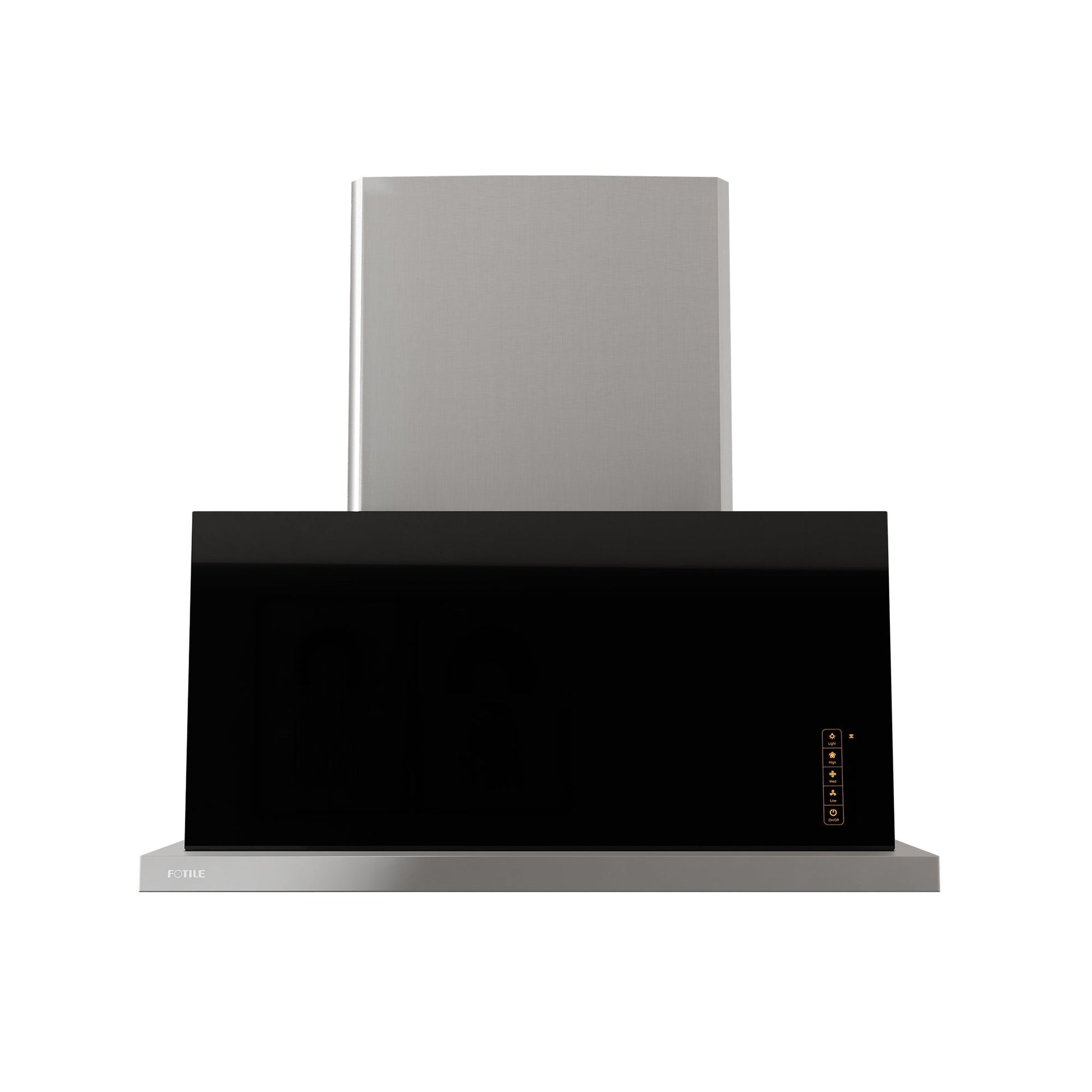

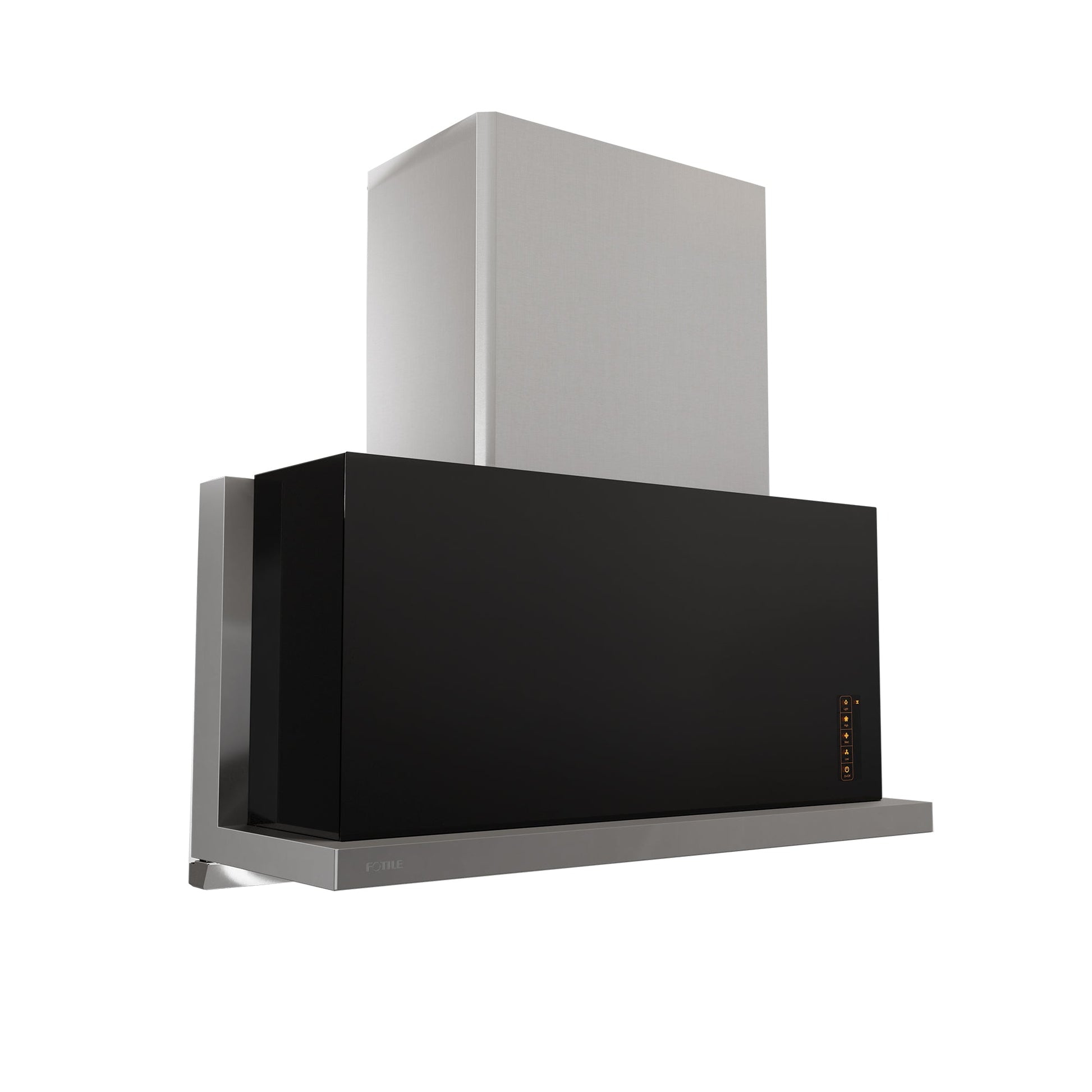

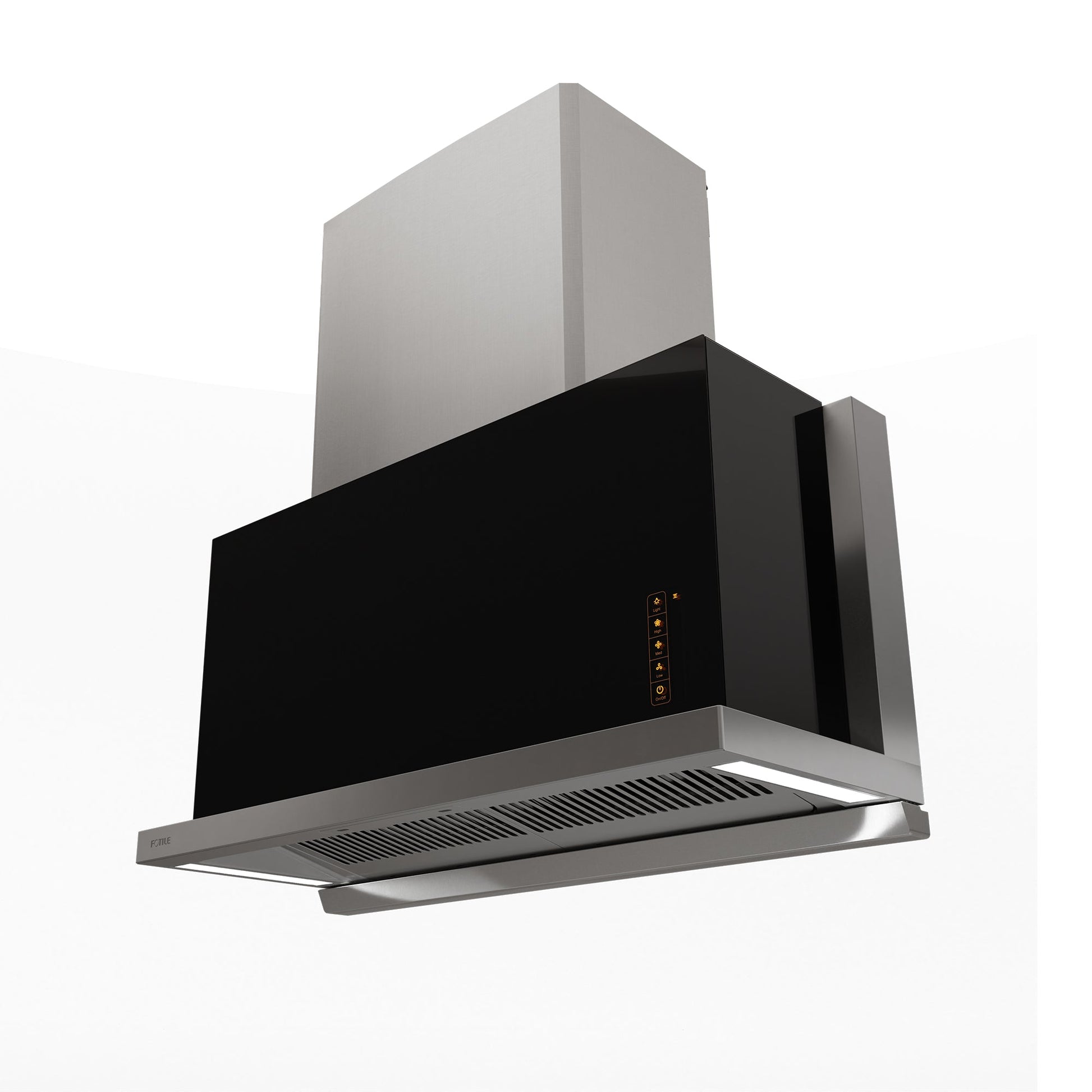

The FOTILE 36" Insert Hood Series (BIG3610) is a revolutionary built-in ventilation solution that brings FOTILE’s signature "Slant Vent" performance to custom cabinetry and decorative hoods. It is the world’s first insert hood to feature an Automatic Descending Capture Shield, allowing it to physically lower itself closer to the cooking surface to trap smoke before it can escape.

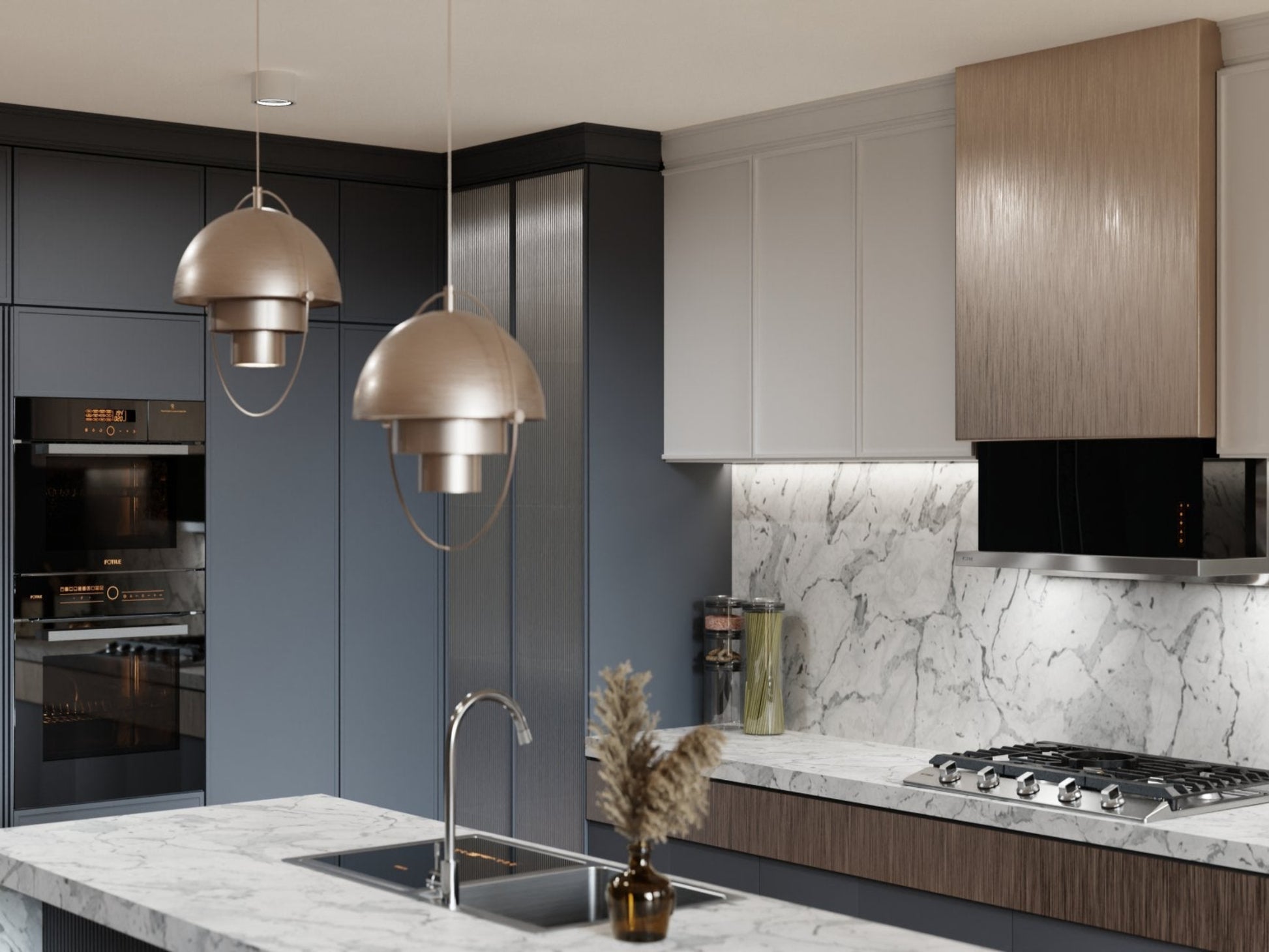

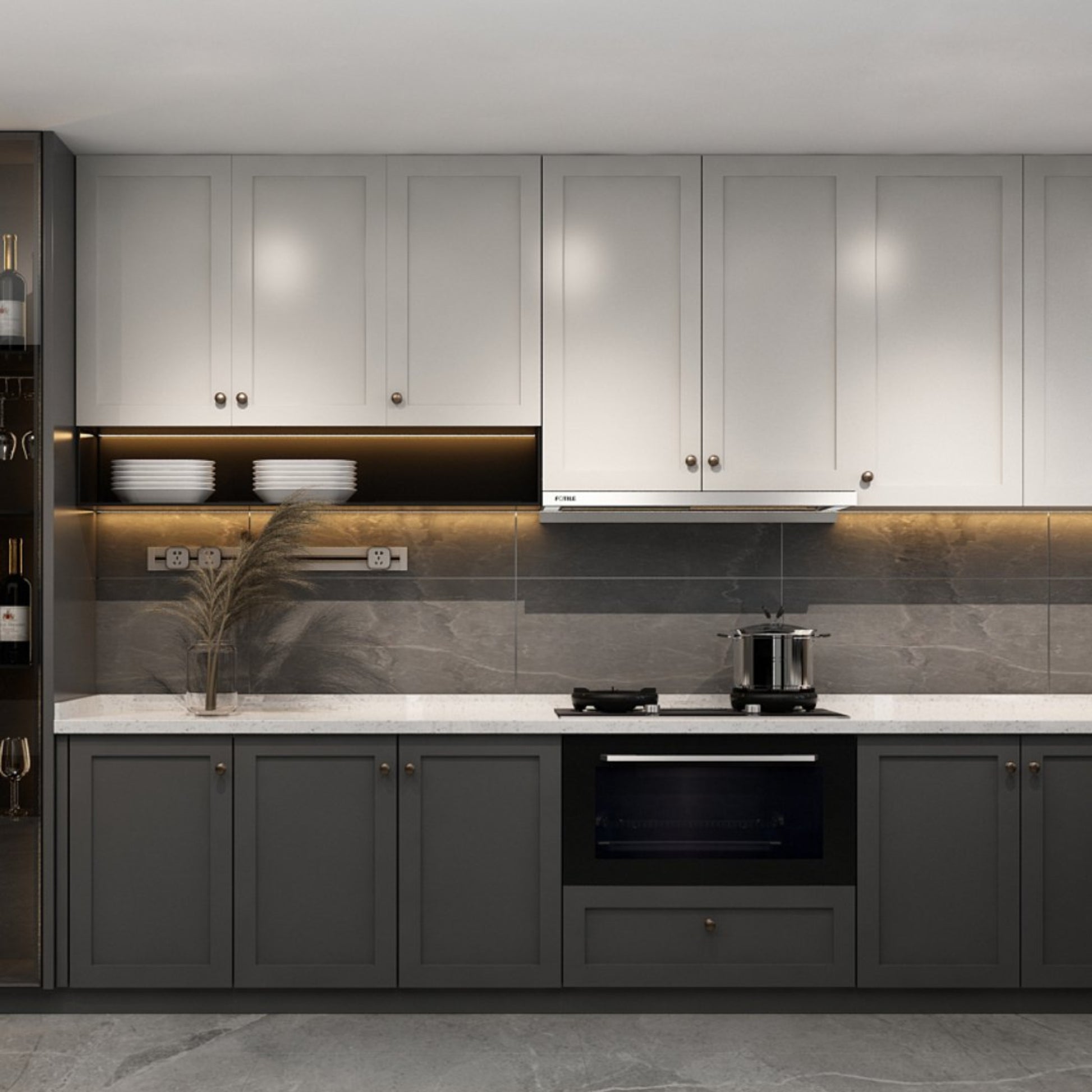

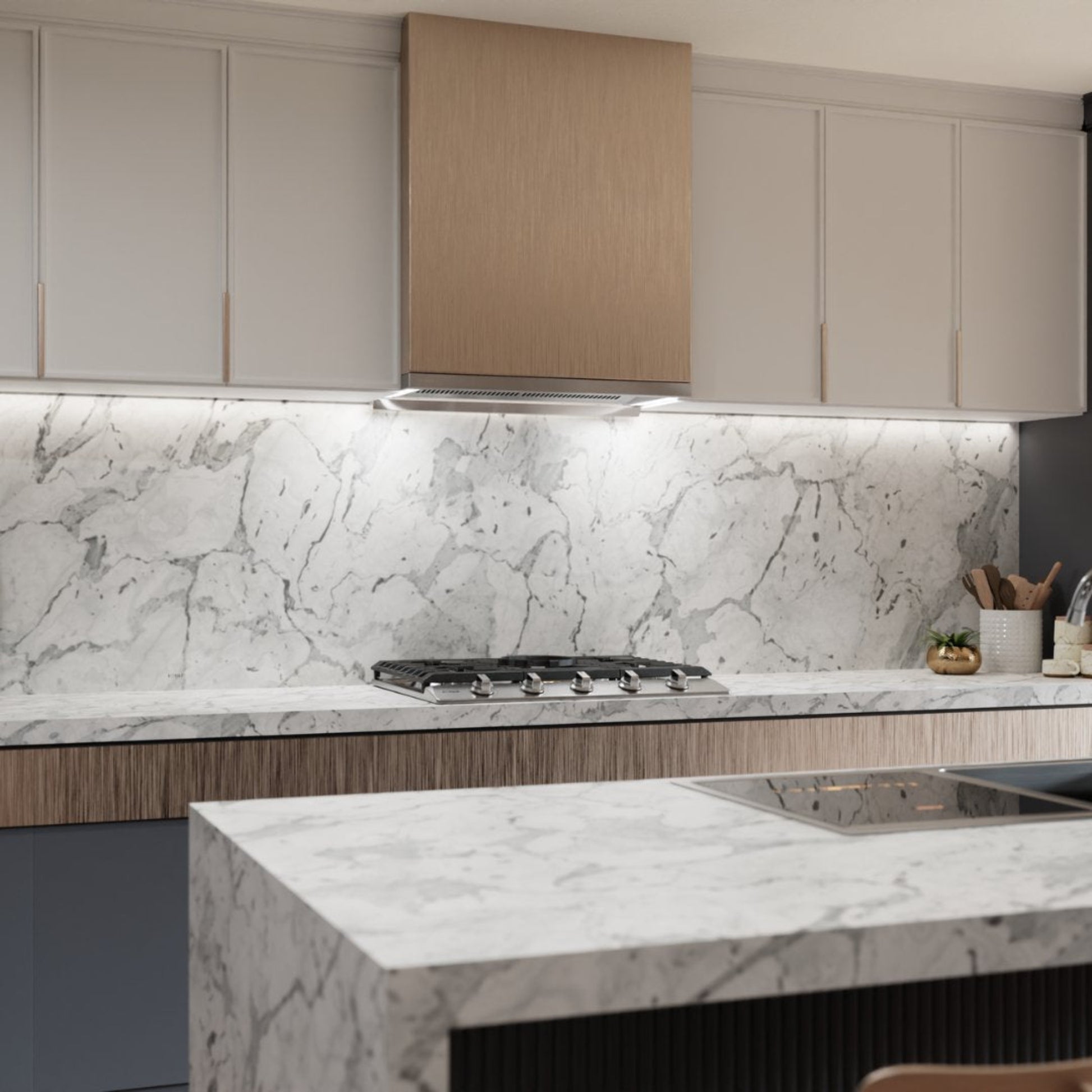

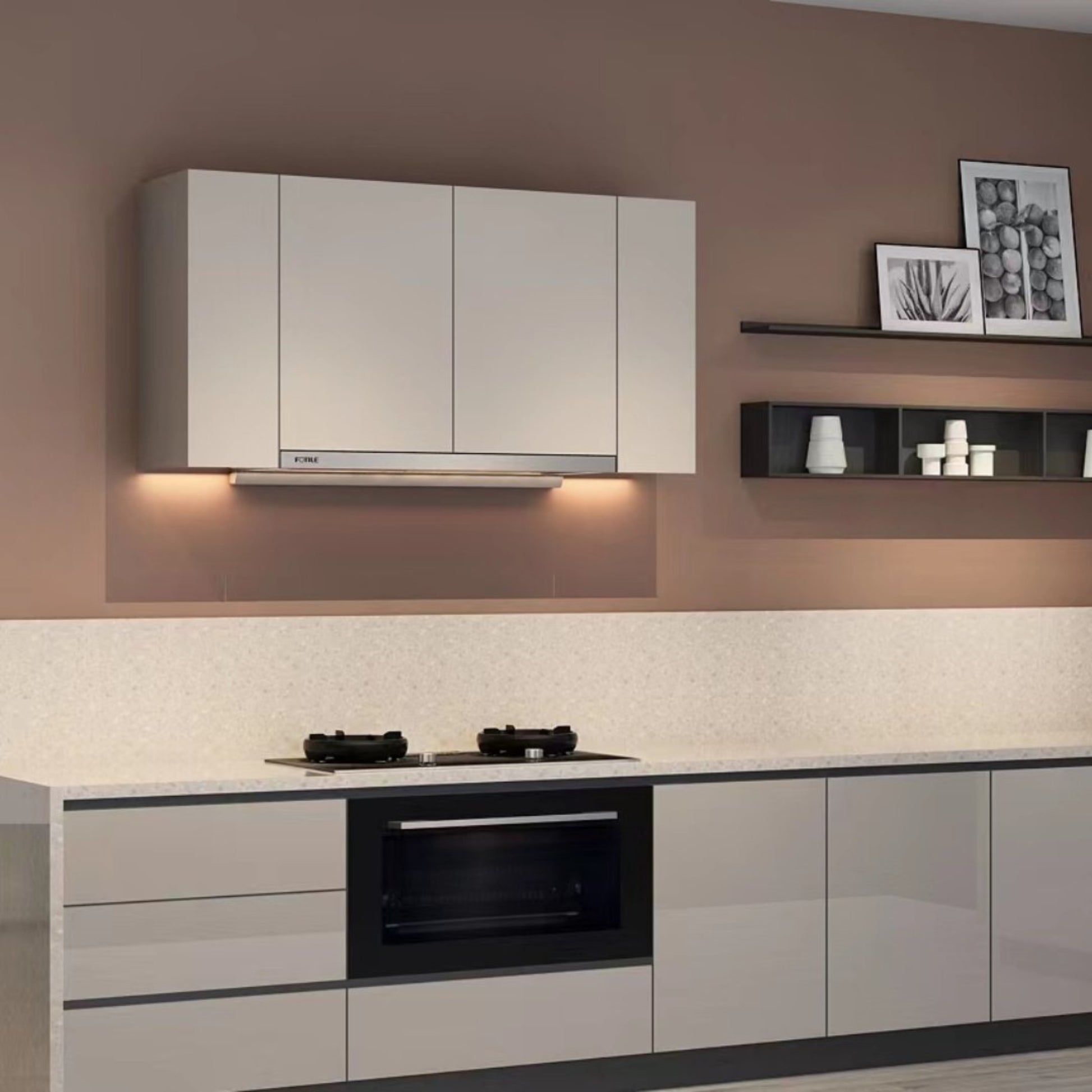

The BIG3610 is designed for homeowners who want a clean, "invisible" kitchen aesthetic without compromising on professional-grade extraction. When inactive, the unit sits flush within the cabinetry. Once activated via Motion Gesture Control, the capture shield automatically descends, creating a "Golden Collection Zone" that effectively blocks cross-drafts. Powered by a Permanent Magnet Synchronous Motor (PMSM)—a technology typically found in luxury electric vehicles—it delivers a massive 1200 Equivalent CFM with higher torque and lower noise than traditional AC or DC motors.
Key Features
-

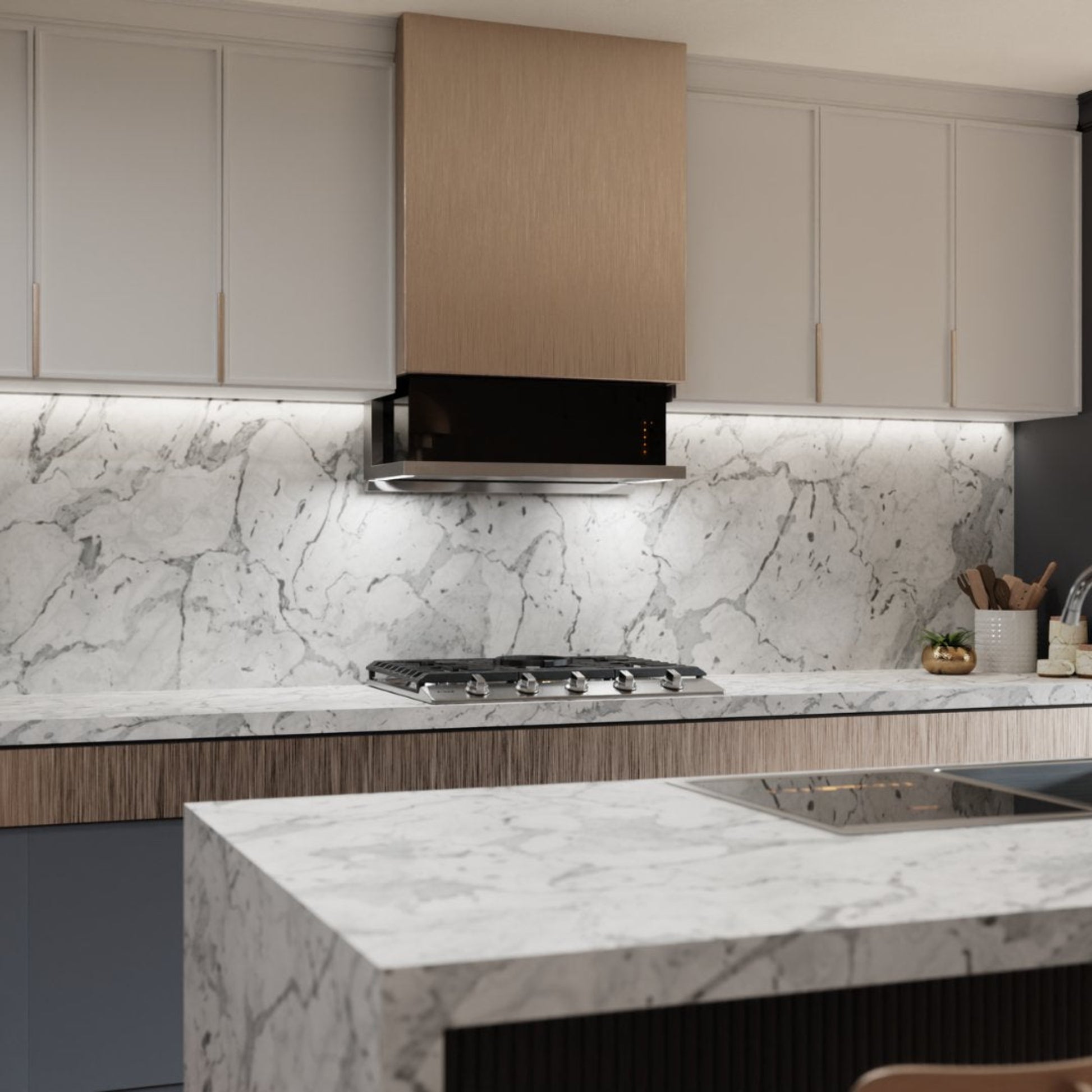

Auto-Descend & Motion Activation: Wave your hand to start the hood; the Capture Shield gracefully lowers to the optimal height for smoke capture and retracts when turned off for a seamless look.
-
PMSM (Permanent Magnet Synchronous Motor): Provides superior torque and 90% more efficiency than standard motors, allowing for a powerful 1000Pa of static pressure to overcome even the most restrictive ductwork.
-
SyncConnect™ Technology: Automatically pairs with compatible FOTILE cooktops (like the GLG36501) to activate the fan and lights the moment a burner is ignited.
-
WhisPower System: Utilizes the Coanda Effect and centrifugal force to accelerate air speed, achieving a 95% oil filtration rate and 97% odor reduction.
-
Whisper-Quiet Operation: Despite its power, it maintains a library-quiet minimum noise level of just 34 dB.
-
5-Minute Delay Shutoff: An extended timer ensures that all invisible grease particles and lingering odors are fully exhausted after you finish cooking.
-
Oversized Oil Cup: Features a high-capacity, easy-to-remove oil reservoir that minimizes maintenance frequency.
Specifications
| Feature | Specification |
| Model | BIG3610 |
| Max EQUIV. CFM | 1200* |
| Max Static Pressure | 1000 Pa |
| Noise Level | 34 dB (Min) / 52.7 dB (Max) |
| Motor Type | Permanent Magnet Synchronous Motor (PMSM) |
| Installation | Insert / Built-in |
| Control Type | Touchscreen + Motion Gesture |
| Dimensions (WxDxH) | 35 1/8" x 13 5/8" x 24 13/16" (Retracted) |
| Capture Area | 7.2 sq. ft. |
| Illumination | Dual 3W LED Lights |
| Duct Size | 6" Round (Top Vent) |
| Weight | 101.4 lbs |
Why Choose the BIG3610?
The BIG3610 is arguably the most advanced insert hood on the market. Its ability to change its physical height solves the primary weakness of most insert hoods (which are often mounted too high to catch all stir-fry smoke). It is the perfect choice for high-end custom kitchens where you want the ventilation to be felt, but not seen.
*Please note: The actual product color may vary slightly from the images shown due to differences in lighting, screen settings, and product finishes.
