The Broilmaster P3PK6N and P3PK7N are the fixed-mount, factory-configured Natural Gas versions of Broilmaster’s premium P3X package line.
While they share the exact same high-performance, indestructible cast-aluminum grill head, the critical distinction between the two lies entirely in how they attach to your property.
The Fundamental Difference
-

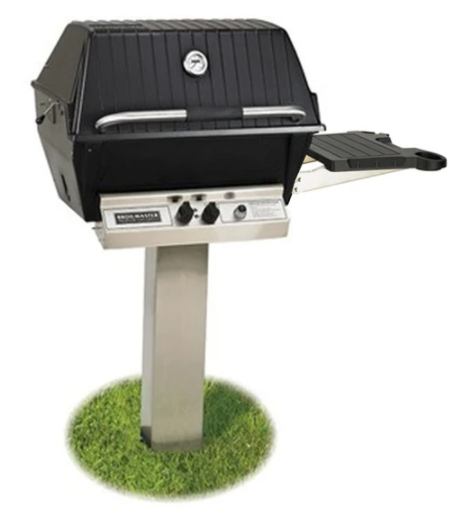

P3PK6N (In-Ground Post Mount): Designed to be permanently sunk into your yard. It features a long, 48-inch stainless steel post meant to be set directly into a wet concrete footing dug into the grass or dirt.
-

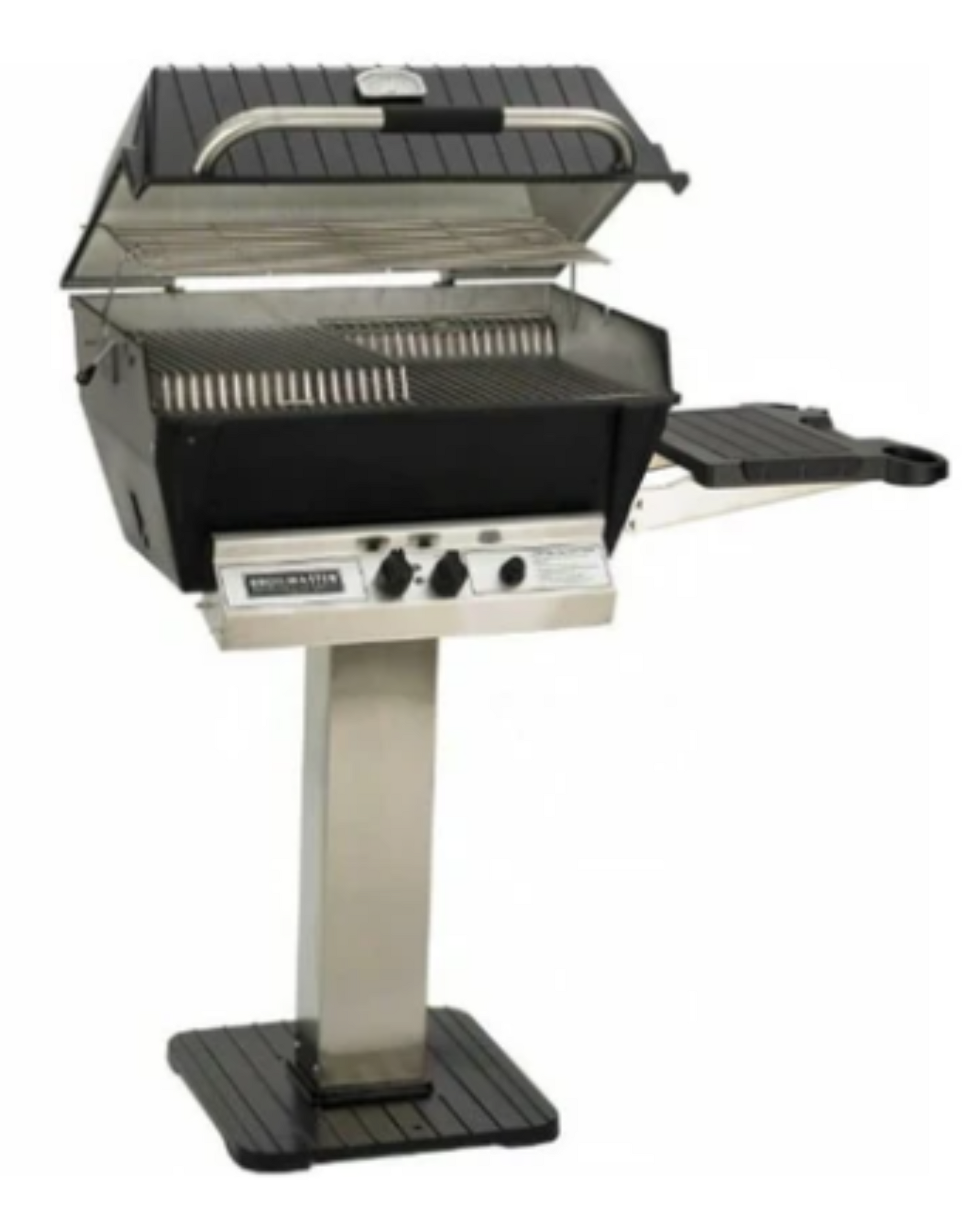

P3PK7N (Patio Pedestal Mount): Designed for finished hard surfaces. It features a shorter 26-inch stainless steel post mated to a heavy, cast-iron base plate that bolts down directly onto a finished concrete patio, pavers, or stone deck.

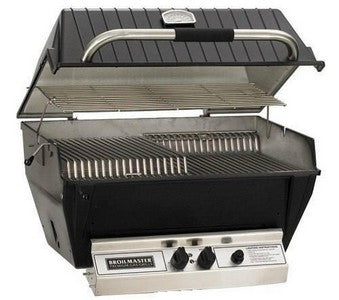

Core Grill Features
Because both configurations utilize the top-tier P3X Premium Head, they include the identical interior luxury components:
-
40,000 BTU Stainless Steel Bowtie Burner: Formed in a signature figure-8 loop to deliver uniform, edge-to-edge heat distribution across the entirety of the cooking grate.
-
Dual-Zone Precision: The front control panel features independent left and right knobs, letting you easily execute indirect roasting (e.g., keeping the left side on high for searing while shutting off the right side to gently finish a thick cut of meat).
-
3-Level Adjustable Rod Grates: Thick, heavy-duty 5/16" stainless steel grids can be dropped down low near the flame for intense steak searing, or raised up into higher slots for slow-baking or warming.
-
CharMaster™ Ceramic Briquettes: Placed on an internal lower grid, these volcanic-style briquettes absorb heat, eliminate open-flame flare-ups, and instantly vaporize drippings into a deep, classic barbecue aroma.
-
Retract-A-Rack: A stainless steel multi-level warming shelf that automatically folds out of the way when you need high-clearance vertical room to smoke a massive whole turkey or large prime rib roast.
Included Package Accessories
Aside from the specialized mounting post, both packages ship with the exact same side utility accessory:
-

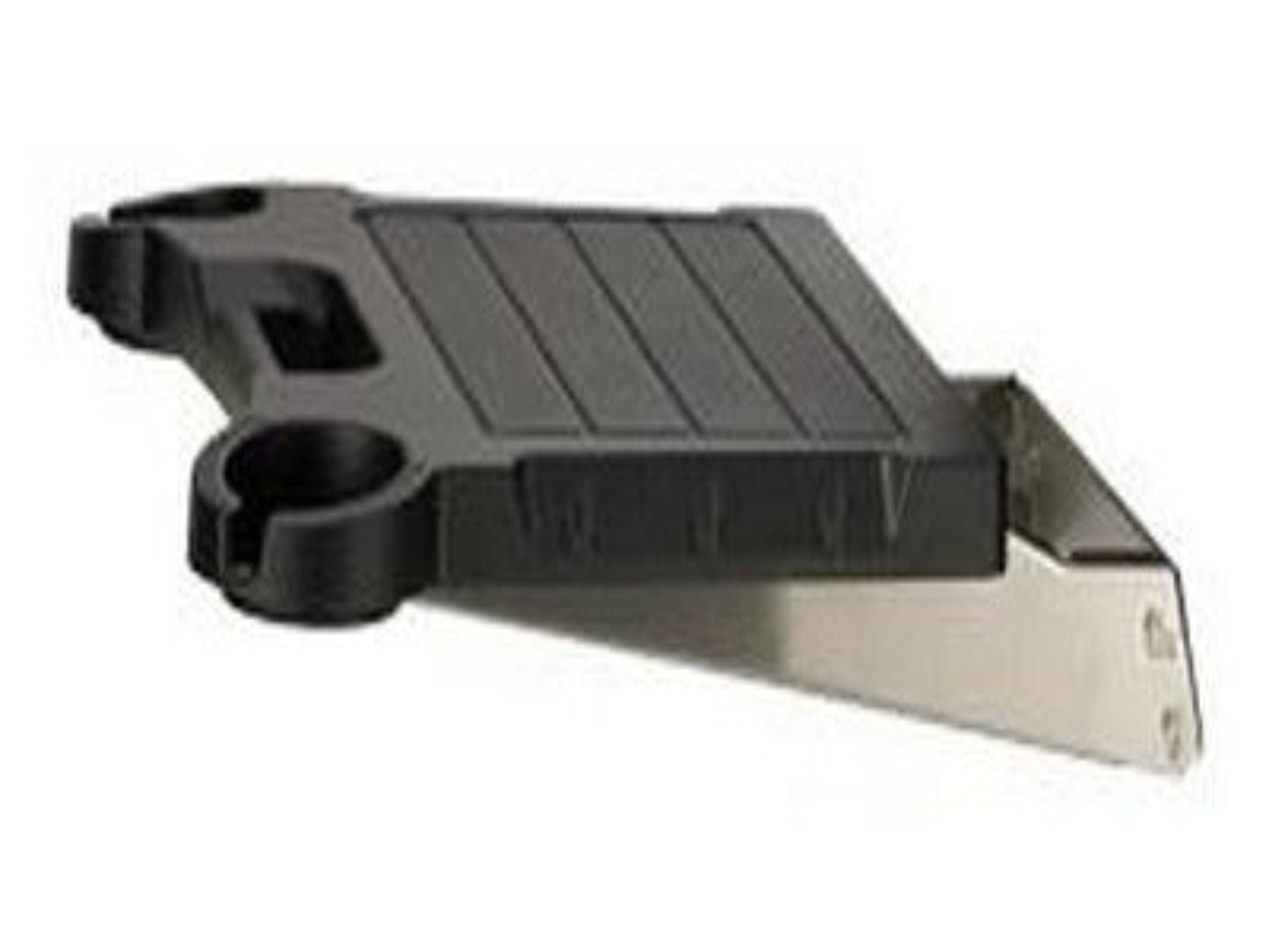

SKFB2 Drop-Down Side Shelf: A weather-resistant, black composite solid-surface side table with two integrated cup holders. It mounts to the side of the cast-aluminum head via heavy-duty stainless steel brackets and folds completely flat to save space when the grill is covered.
Specifications Comparison
| Feature | P3PK6N (In-Ground) | P3PK7N (Patio Base) |
| Fuel Type | Natural Gas (NG) | Natural Gas (NG) |
| Heat Output | 40,000 BTUs | 40,000 BTUs |
| Total Grilling Area | 695 sq. in. ($442\text{ Primary} / 253\text{ Secondary}$) | 695 sq. in. ($442\text{ Primary} / 253\text{ Secondary}$) |
| Grill Head Material | Thick-Wall Black Cast Aluminum | Thick-Wall Black Cast Aluminum |
| Mounting Hardware | 48" Stainless Steel Ground Post | 26" Stainless Post with Cast Iron Base Plate |
| Assembled Height | Variable (Approx. 68" total post length) | Fixed at 46.5" High |
| Approx. Shipping Weight | 96 lbs | 96 lbs |
Crucial Installation Tips for Natural Gas
For the P3PK6N (In-Ground):
-
The Gas Run: Because it is powered by Natural Gas, your trenching must be coordinated carefully. You will want to run your underground gas line up through the center of the hollow stainless steel post before you pour the concrete footing. This completely conceals the plumbing for a incredibly clean architectural appearance.
-
Depth: Requires a post-hole dug down roughly 18 to 24 inches deep to combat seasonal ground-freeze heave and ensure maximum structural leverage.
For the P3PK7N (Patio Pedestal):
-
Anchoring: Though the cast-iron base plate provides decent physical weight, Broilmaster explicitly dictates that it must be hard-anchored using stainless steel masonry sleeve anchors (into concrete) or lag bolts (into a structural deck beam).
-
Gas Feed: Your natural gas line typically emerges straight up out of the patio floor right under the center footprint of the base plate, feeding cleanly up into the pedestal post.
