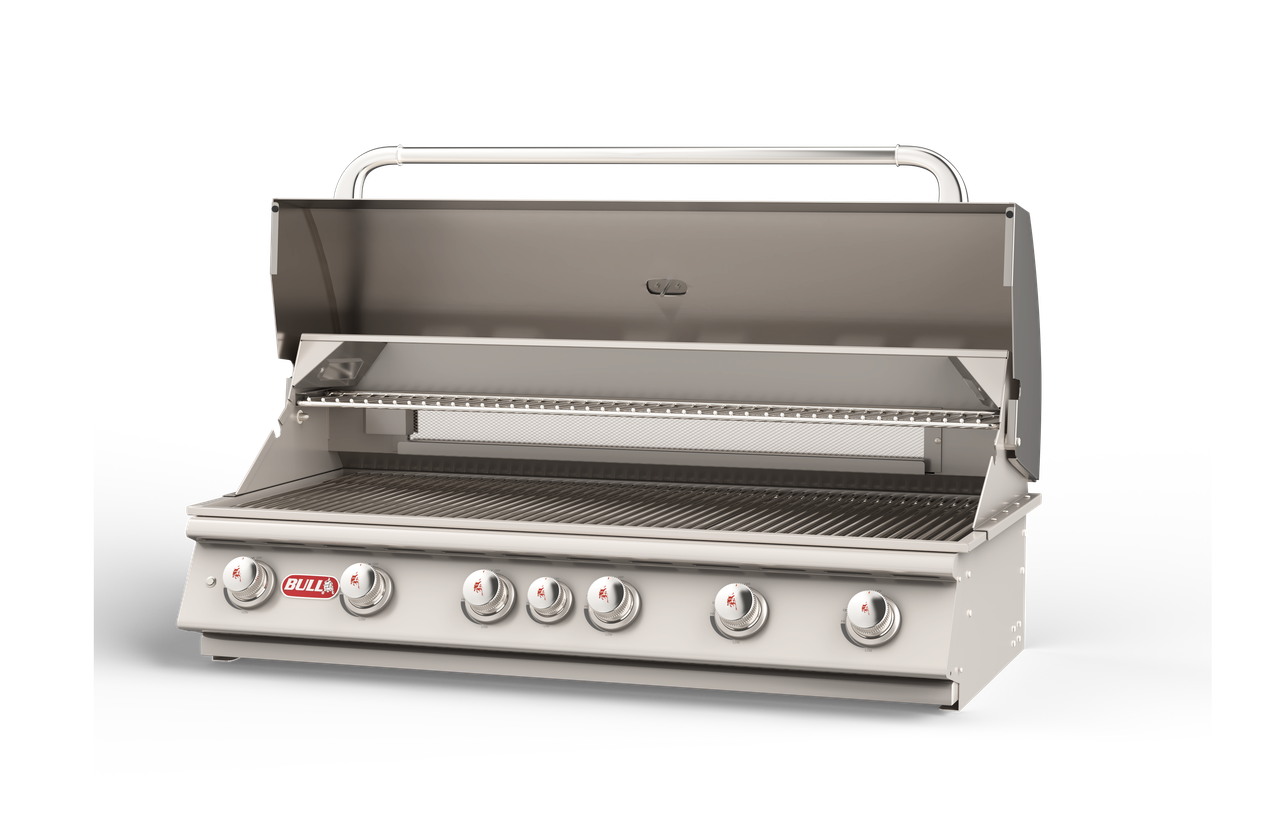

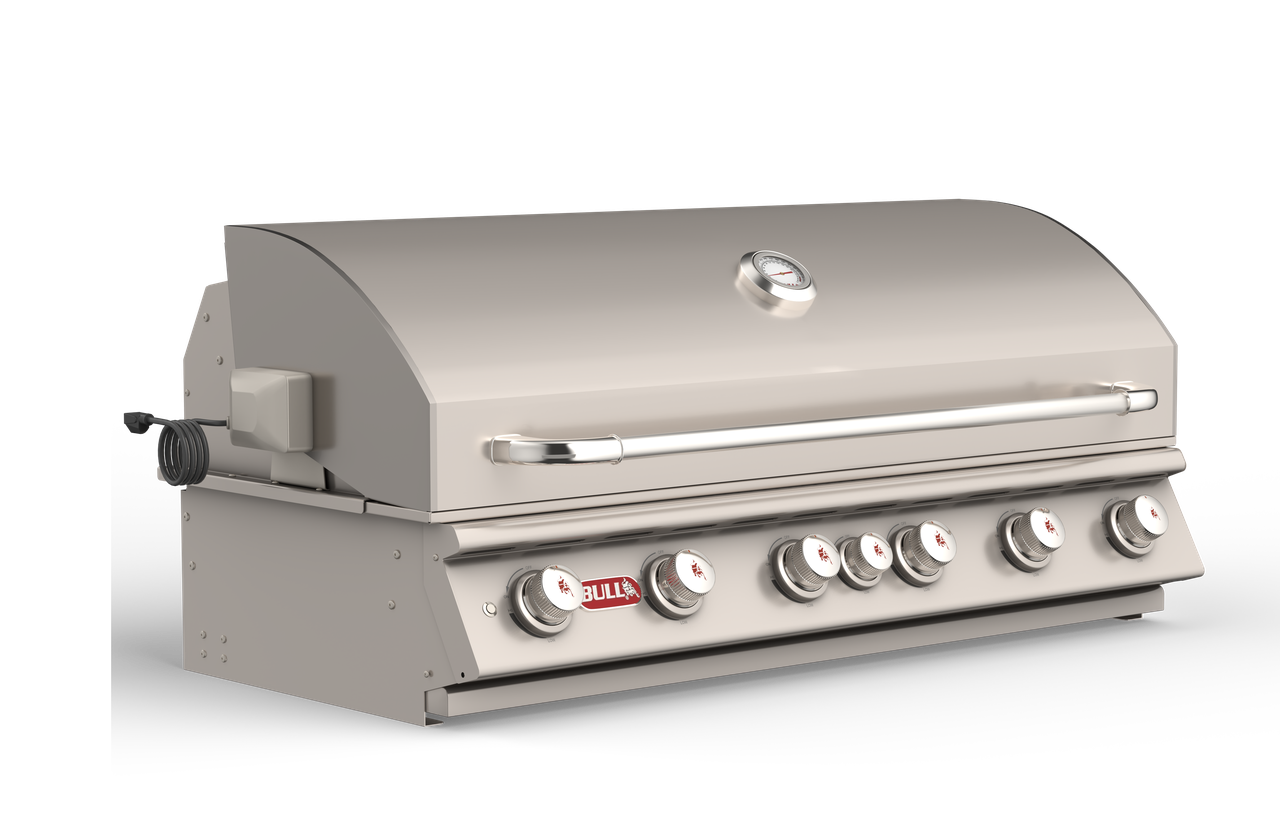

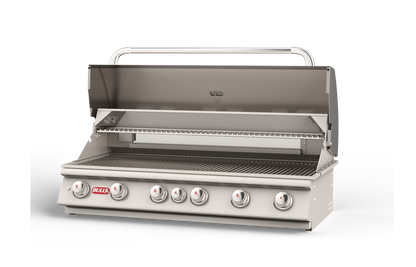

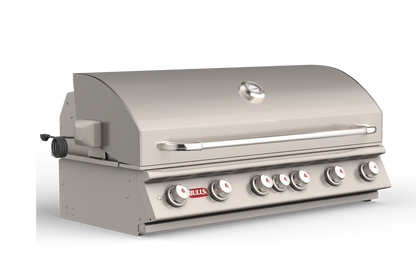

The Diablo is Bull’s largest, most intimidating built-in grill head, engineered for expansive luxury estate islands, heavy entertaining, and commercial-scale home catering. Spanning nearly 4 feet in width, it is constructed entirely out of high-grade 14-gauge 304 stainless steel. It takes the premium engineering of the Brahma series and expands the firebox to a massive 6-burner layout, delivering the raw thermal power and surface area required to manage complete multi-course banquet menus simultaneously.
Key Structural & Elite Performance Features
-
Six Cast Stainless Steel Burners: Features 6 proprietary, solid cast stainless steel bar burners pushing out 15,000 BTUs each, forcing a fierce 90,000 BTUs across the main cooking grates. These blocks of cast steel are practically indestructible and retain heat far longer than traditional hollow burners.
-
Rear Infrared Rotisserie Subsystem: Outfitted with a dedicated, flush-mounted 15,000 BTU rear infrared ceramic back-burner. Out of the box, it includes a premium stainless steel motorized rotisserie kit, a heavy spit rod, and counterbalanced forks engineered to effortlessly slow-roast large suckling pigs, multiple whole chickens, or full prime ribs.
-
ReliaBULL Even-Heat Engineering: Utilizing an expansive array of scientifically calibrated 304 stainless steel flame tamers, this massive firebox completely eradicates hot and cold spots. It improves heat distribution across the giant surface area by up to 250%, letting you utilize every square inch of grate space uniformly.
-
Extra-Large Solid Stainless Steel Cooking Grates: Features ultra-thick, high-mass solid stainless steel cooking rods that create professional, deep sear marks and won't pit, rust, or chip like porcelain-coated variations.
-
Dual-Halogen Night Lighting: Features two integrated, heat-shielded internal halogen bulbs that flood the entire gridded surface with bright light, ensuring precise meat coloration checks long after dark.
-
Single-Piece Double-Lined Hood: The seamless roll-top lid functions like a high-end commercial convection oven when pulled down, trapping heat while preventing the heavy exterior steel facade from warping or discoloration.
Cooking Area Breakdown
-
Primary Cooking Surface: 1,242 Sq. Inches (Measures roughly 45 5/8" x 19", easily accommodating up to 40 standard burgers at once).
-
Secondary Warming Rack: 322 Sq. Inches.
-
Total Combined Cooking Footprint: 1,564 Sq. Inches.
-
Total Thermal Firepower: 105,000 BTUs (90,000 main grid + 15,000 rear infrared).
Specifications & Island Cutout Dimensions
Because of the massive physical width and tremendous deadweight of this 46-inch flagship head, your building crew must frame out the outdoor kitchen island to these exact masonry specifications:
| Metric Profile | Dimension Requirements |
| Cutout Width | 46" |
| Cutout Depth | 21" |
| Cutout Height | 9 1/2" |
| Overall Unit Width | 47 1/4" |
| Net Structural Weight | ~215 - 216 lbs (Requires multiple people to safely lift and position). |
| Factory Warranty | Lifetime on Firebox, Cooking Grates, and Cast Stainless Burners |
Critical Framing Integration Note
⚠️ The 105,000 BTU Structural Guardrail: The Diablo generates immense thermal energy inside its massive firebox. If your outdoor kitchen island is being framed with structural wood or synthetic composite lumber instead of heavy steel studs and cement backer board, you must install a matching Bull 46-Inch Insulated Grill Jacket. Dropping this 105,000 BTU unit directly into a combustible framed slot creates an immediate and severe structural fire hazard.
