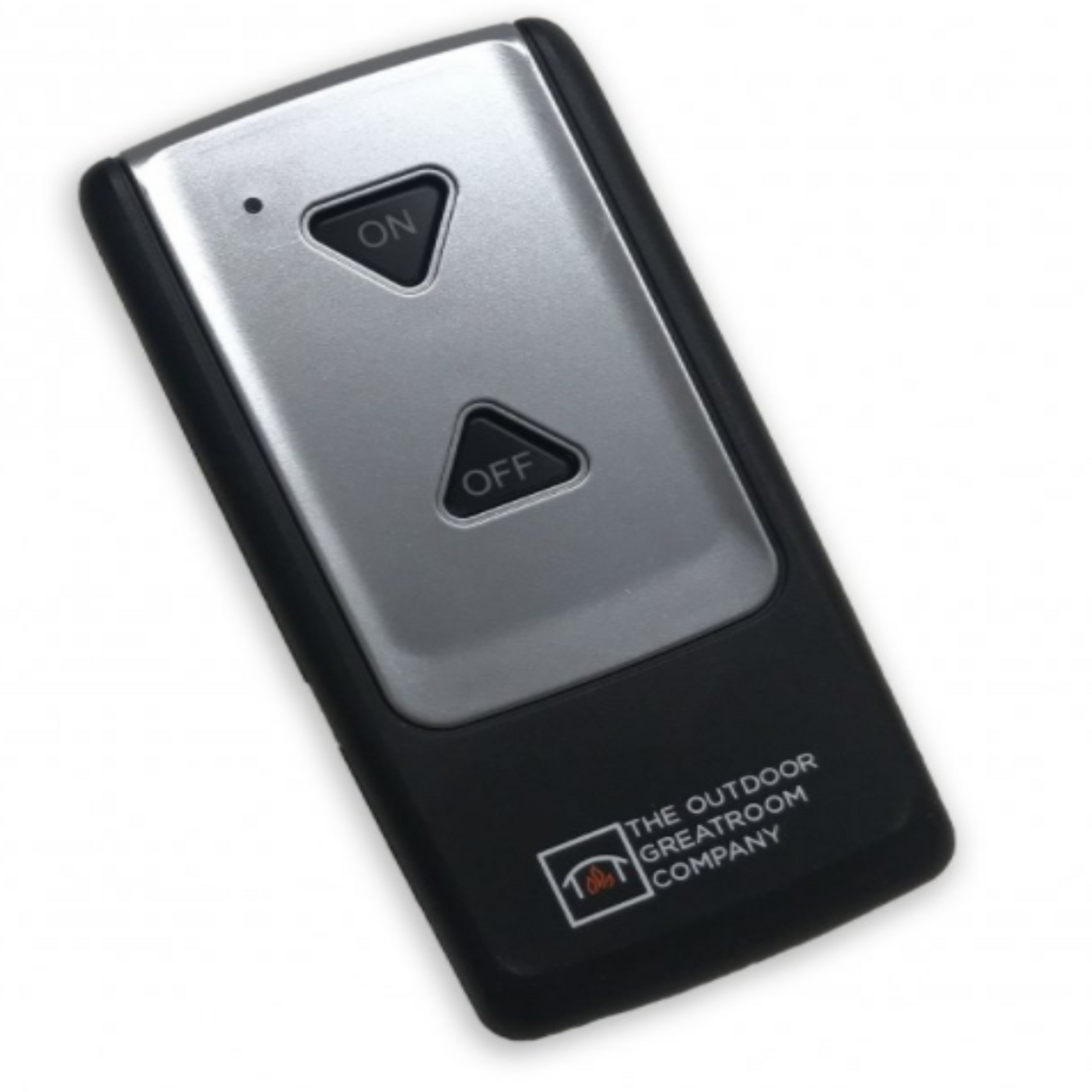

The CF-DSI-R is a heavy-duty, handheld wireless transmitter that gives you a "couch-potato level" of luxury for your outdoor space. Instead of having to lean over the fire pit table, open the access door, and twist a valve or press a button while holding a lighter, this remote lets you safely light or extinguish the fire pit from a distance. It communicates directly with the electronic automatic valve module housed inside the fire pit's weatherproof enclosure.
Key Features
-
Convenient On/Off Operation: Features a simplified, sleek button layout dedicated entirely to turning the system on or off instantly.
-
30-Foot Range: Offers an average maximum wireless range of 25 to 30 feet, meaning you can turn your fire pit on from inside the house or from across the patio before you even walk out.
-
Flame-Sensing Safety Sync: It works in tandem with the DSI system's smart internal computer. If you turn the fire pit on via the remote and the wind blows the flame out, the system will automatically try to reignite itself for 12 seconds. If it can't, it safely shuts the gas line off automatically.
-
Easy Pairing: Features an internal frequency learning mode, allowing you to easily sync the handheld remote transmitter to the receiver module located under the fire table tray.
Specifications
| Feature | Specification |
| Model Number | CF-DSI-R |
| Type | Remote Control Transmitter Kit |
| Range | 25–30 Feet (Average) |
| Frequency Type | Radio Frequency (RF) |
| Compatibility | Outdoor Greatroom Crystal Fire® Plus DSI Systems |
| Weight | ~1.0 lb |
Crucial Compatibility & Installation Notes
-
Cannot Be Used with Manual Gas Valves: This remote will not work on standard, entry-level fire pits that use a manual key valve or a simple piezo push-button battery igniter. Your fire pit must be built with or upgraded to the 110V/Direct Spark Ignition electronic valve kit.
-
The "Timer" Conflict: Important Note: The CF-DSI-R remote control cannot be used if your fire pit is already wired to an automatic emergency countdown timer control panel (such as the 60-Minute or 4-Hour commercial timers like the CF-DSI-60MT or 4HRTC). The system can only process commands from one master control interface (either the remote or the hardwired wall timer).
-
Power Source: While the remote transmitter in your hand runs on standard small batteries, the DSI receiver module inside the fire pit base typically requires a standard 110V electrical connection to power the internal automatic gas solenoids.
